Infilltrator - 1500g Septic Tank - IM-1530

***Available in Indiana and parts of Ohio and Illinois. Please contact us if you are outside of this service area.***

Description

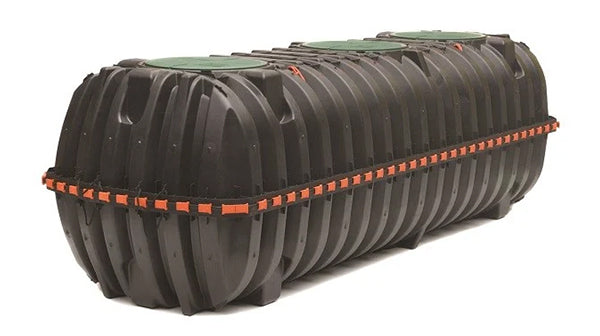

The Infiltrator IM-1530 is a lightweight, strong, and durable septic tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator injection molded tanks provide a revolutionary improvement in plastic septic tank design, offering exceptional long-term strength and water tightness.

Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.

Benefits

• Strong injection molded polypropylene construction
• Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling.
• Structurally reinforced access ports eliminate distortion during installation and pump-outs

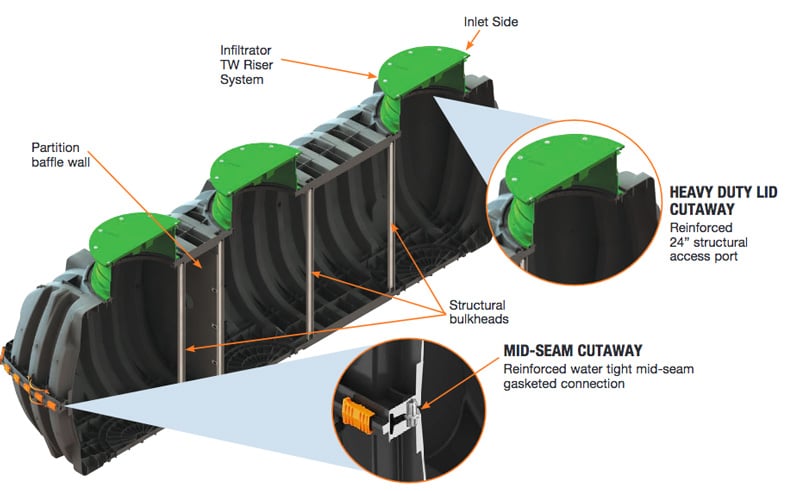

• Reinforced structural ribbing and fiberglass bulkheads offer additional strength
• Can be installed with a 6" to 48" cover
• Can be pumped dry during pump-outs
• Suitable for use as a septic tank, pump tank, or rainwater (non-potable) tank
• No special installation, backfill or water-filling procedures are required
• No special water filling requirements are necessary
• The tank may be backfilled with suitable native soil. See installation instructions for guidance.

Specifications

Size
62"W x 176"L x 55"H
(1567 mm x 4460 mm x 1384 mm)

Access Port
24" (610 mm)

Weight
501 lbs (228 kg)

Total Capacity
1787 gal (6765 L)

Working Capacity
1537 gal (5818 L)

Burial Depth
Minimum 6" (152 mm)
Maximum 48" (1219 mm)

Infiltrator Septic Tanks — FAQs

What is an Infiltrator septic tank?

Infiltrator septic tanks are injection molded plastic (polypropylene) tanks that replace traditional concrete. They're lighter, faster to install, and don't require a crane. The IM-1530 is Infiltrator's 1,500 gallon model, the largest in the IM series and a common choice for 4 to 5 bedroom homes.

What are the dimensions of the Infiltrator IM-1530?

The IM-1530 measures 62" W x 176" L x 55" H, with 1,537 gallons of working capacity (1,787 gallons total capacity). Despite its size it weighs only 501 lbs, allowing placement with a backhoe or excavator already on site. No specialized delivery equipment needed.

How much does an Infiltrator septic tank cost?

Infiltrator tanks range from about $919 for the 500 gallon IM-540 to $1,700 for the 1,000 gallon CM-1060 to $2,125 for the 1,500 gallon IM-1530, plus freight. Crane free installation typically keeps total project cost lower than concrete. See our 500 gallon IM-540 and 1000 gallon CM-1060 for smaller applications.

How long do Infiltrator plastic septic tanks last?

Infiltrator polypropylene tanks are engineered for a design life comparable to or exceeding concrete. The material doesn't crack, corrode, or degrade from septic gases. Infiltrator backs its septic tanks with a five year limited warranty against defective materials and workmanship, provided the tank is installed per their instructions by a qualified installer.

Can I install an Infiltrator tank myself?

Installation must follow Infiltrator's published instructions and local health codes. Most jurisdictions require a licensed installer to pull the permit, and Infiltrator's warranty itself requires installation by a licensed or properly qualified installer. The tank installs like concrete but without a crane: excavate, level bedding, set, connect, and backfill per spec. Download the official installation instructions from Infiltrator.
