Infilltrator - 1000g Septic Tank - CM-1060

***Available in Indiana and parts of Ohio and Illinois. Please contact us if you are outside of this service area.***

Description

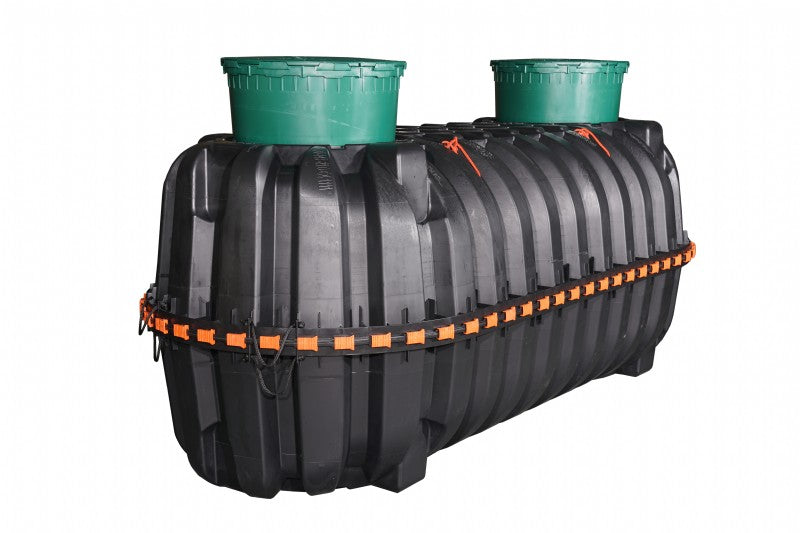

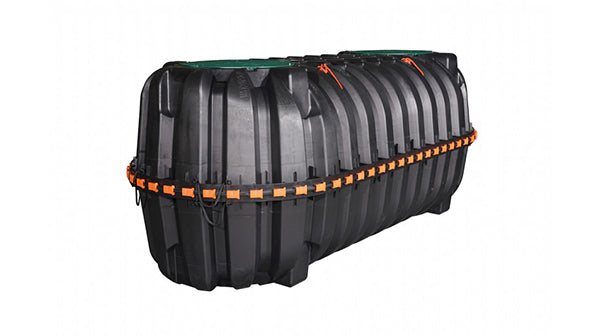

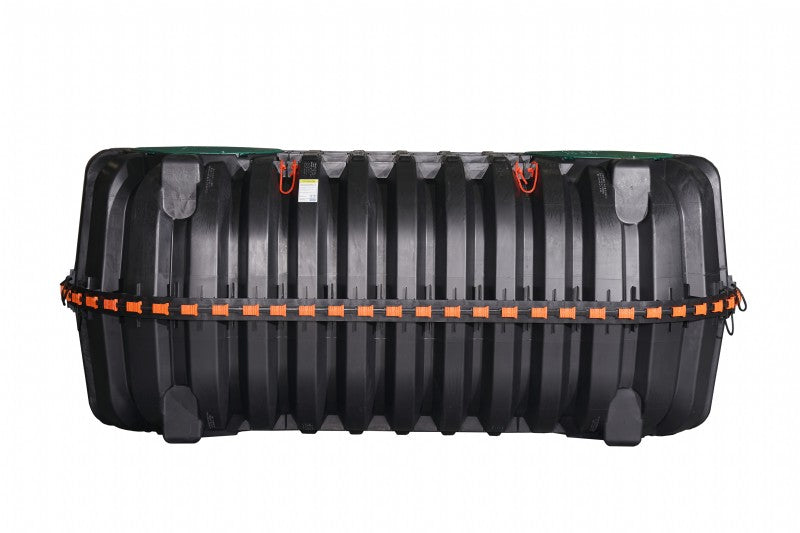

The Infiltrator CM-1060 is a lightweight, strong, and durable septic tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator compression molded tanks provide a revolutionary improvement in thermoplastic septic tank design, offering exceptional long-term strength and water tightness.

Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.

Benefits

• Strong compression molded polypropylene construction
• Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling.
• Integral heavy-duty green lids that interconnect with EZsnap risers and pipe riser solutions
• Structurally reinforced access ports eliminate distortion during installation and pump-outs
• Reinforced structural ribbing and fiberglass bulkheads offer additional strength
• Can be installed with 6” to 48” (152 to 1,219 mm) of cover
• Can be pumped dry during pump-outs
• Suitable for use as a septic tank, pump tank, or rainwater (non-potable) tank
• No special water filling requirements are necessary
• The tank may be backfilled with suitable native soil. See installation instructions for guidance.

Tech Specs

Size
61.7"W x 134"L x 54.5"H
(1567 mm x 3409 mm x 1384 mm)

Two Access Ports
Each 24" (610 mm)

Weight
331 lbs (151 kg)

Total Capacity
1309 gal (4956 L)

Working Capacity
1111 gal (4207 L)

Burial Depth
Minimum 6" (152 mm)
Maximum 48" (1219 mm)

Infiltrator 1000 Gallon Septic Tank — FAQs

What are the dimensions of the Infiltrator 1000 gallon septic tank?

The CM-1060 measures 61.7" W x 134" L x 54.5" H, with 1,111 gallons of working capacity (1,309 gallons total capacity). Built from compression molded polypropylene, it weighs 331 lbs, a fraction of a comparable concrete tank, so two people can position it on site.

How much does an Infiltrator 1000 gallon septic tank cost?

The CM-1060 is priced at $1,700.00 plus freight. Total installed cost runs well below concrete equivalents because delivery doesn't require a boom truck and placement doesn't require a crane. Order online and we ship to your site.

Is a 1000 gallon septic tank big enough for my house?

A 1,000 gallon tank is the most common size for 3 bedroom homes in most jurisdictions. Local codes set minimums by bedroom count, not square footage. Many areas require 1,250 to 1,500 gallons for 4+ bedrooms. Always confirm with your county health department.

What are the specs of the Infiltrator CM-1060?

The CM-1060 features two 24" access ports, structurally reinforced ribs with fiberglass bulkheads, and integrated riser connections compatible with EZsnap risers. Burial depth runs 6" to 48". It's watertight when installed per Infiltrator's instructions and requires no water fill during backfill.
