Zoeller - N98 - 98-0002
Zoeller - N98 - 98-0002
***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR MORE INFORMATION***

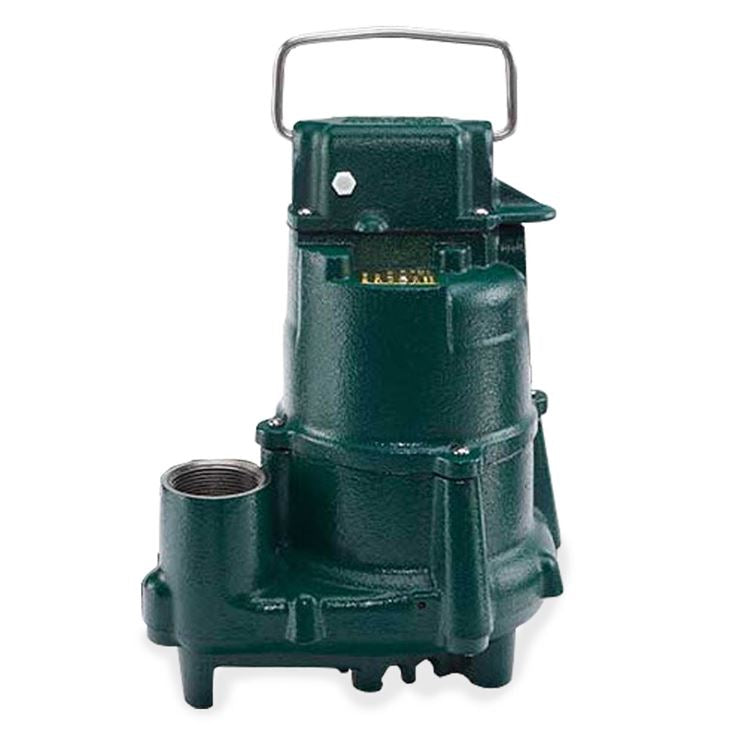

The Zoeller N98 "Flow-Mate" Effluent Pump is designed for residential or light commercial dewatering applications and can transfer groundwater or effluent. This durable cast iron pump includes a powder-coated epoxy finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each is 100% pressure-tested, submerged, and run to ensure quality and reliability for years of trouble-free performance.
Features:
- Corrosion-resistant, powder-coated epoxy finish
- Durable, cast iron construction
- Cast iron switch case, motor, and pump housing
- Engineered thermoplastic base
- No sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000# tensile strength
- Stainless steel screws, guard, handle, arm, and seal assembly
- Float-operated 2-pole mechanical switch
- Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
- Bearings – upper and lower oil-fed cast iron
- Carbon and ceramic shaft seal
- Entire unit pressure-tested after assembly
- Watertight, neoprene square ring between motor and pump housing
- Maximum temperature for effluent or dewatering: 130 °F (54 °C)
- Passes 1/2” (13 mm) spherical solids
- No screens to clog
- 1-1/2” NPT discharge (1-1/2” x 2” PVC adapter included with BN and BE Models)
- On point: 9-1/2” (24 cm)
- Off point: 3” (8 cm)
- Major width: 10-1/8" (25.7 cm)
- Major height: 12" (30 cm)
- Simplex and duplex systems are available
- Packaged systems available
- Automatic and non-automatic available
- Available with piggyback variable level float switch
Tech Specs:
- Type: Manual
- Application: Plumbing
- Material: Cast Iron
- Horse Power: 1/2
- Voltage: 115v
- Flow at 5 FT Head: 72 GPM
- Shutoff Head (ft.): 23'
- Amperage: 9.4
- Hertz: 60
- Phase: 1
- RPM: 1725
- Cord Length: 15'
- Cord Type: UL Listed Power Cord
- Height (Inches): 12"
- Width (Inches): 10-1/8"
- Warranty: 3 Year
Manuals:
