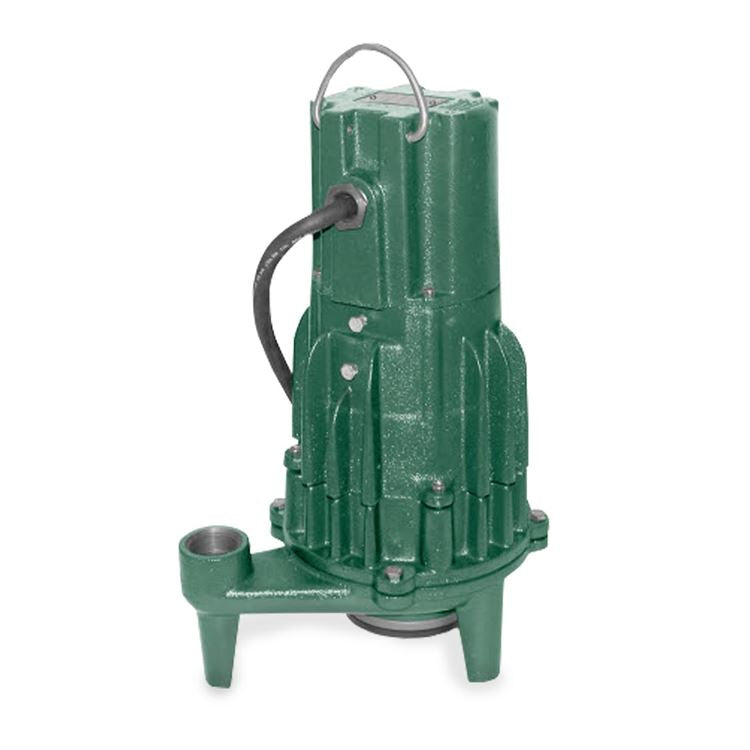

Zoeller - E820 - 820-0004

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR MORE INFORMATION***

This submersible pump series is designed for residential or commercial wastewater applications and can be used to transfer wastewater or unscreened raw sewage. Each pump features an innovative cutting mechanism to grind solids into fine particles. The uniform consistency of the discharged material lessens the risk of clogs in the pipe, yielding less downtime and fewer service calls. These durable cast iron pumps include a powder-coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor. As with every Zoeller® pump, each is 100% factory tested to ensure quality and reliability for years of trouble-free performance!

Features:

• 1-1/4" NPT vertical discharge
• Carbon/ceramic seal
• Thermal overload protection
• Balanced bronze impeller
• Stainless steel cutter plate/cutter
• Stainless steel shaft
• Stainless steel hardware
• 20 ft power cord, extra lengths available
• Non-Automatic model with Integral Control, automatic available
• UL listed
• Durable, heavy-duty, finned cast iron construction
• Legs provided for free-standing installation
• Oil-filled, hermetically sealed motor with Class B insulation, automatic reset thermal overload protected
• Upper and lower ball bearings running in bath of oil

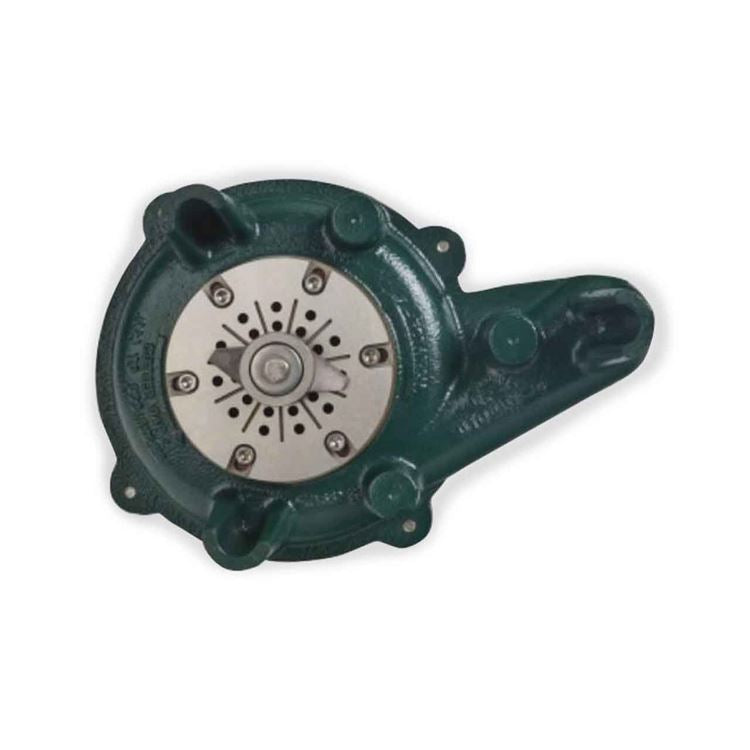

• Hardened stainless steel cutter and disc
• Cutters protected from abrasive solids
• Stainless steel lifting handle, screws and bolts
• Easily adapts to rail systems
• Mechanical shaft seal - carbon/ceramic
• Control panels not required
• Simplex grinder package systems (unassembled and job ready/assembled) available
• Corrosion-resistant, powder coated epoxy finish
• Maximum operating temperature: 130°F (54°C)

Tech Specs:

• Type: Manual
• Application: Plumbing
• Shutoff Head (ft.): 107'
• Flow at 5 FT Head: 46 GPM
• Amperage: 13.7
• Voltage: 230v
• Horse Power: 2
• RPM: 3450
• Discharge: 1-1/4"
• Cord Length: 7.5'
