Zoeller - E810 - 810-0004

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR MORE INFORMATION***

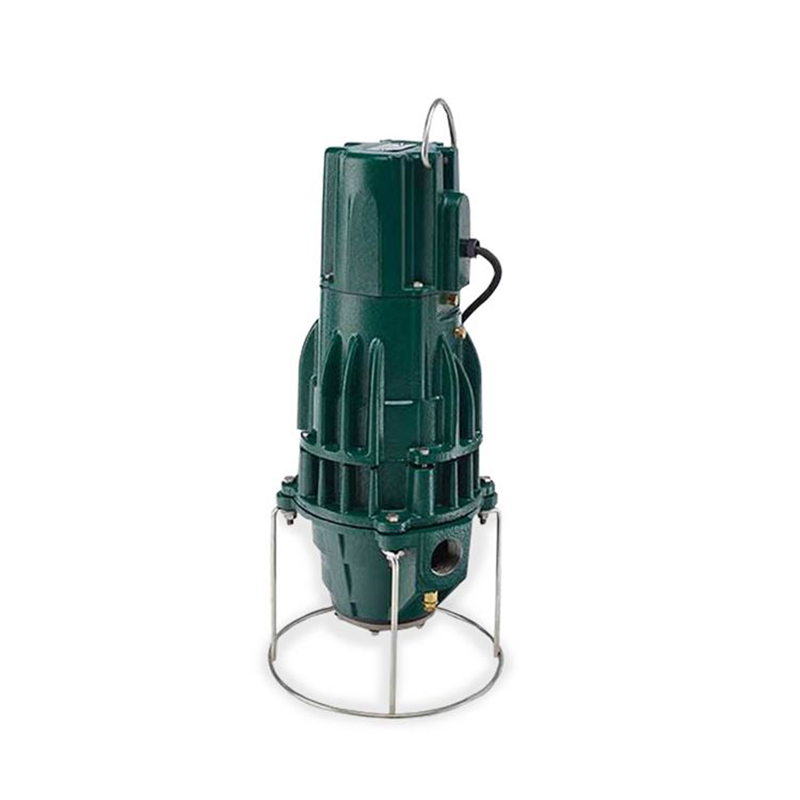

This cavity grinder pump is designed for grinding and pumping sanitary sewage from submersible lift stations. The pump is intended to grind and pump reasonable quantities of items normally found in sanitary sewage applications.

The Zoeller E810 can be installed in new applications or as a direct replacement for any size and capacity grinder application. It can also be installed in a Prepackaged Job Ready System or used in a Field Assembled basin package.

This unit can be retrofitted to existing positive displacement pump installations.

Features:

• Finned, class 30 cast iron construction
• 1 HP, 230 Volts, 1 Phase
• 1-1/4" NPT discharge
• Maximum operating temperature 130°F (54°C)
• Oil-filled, hermetically sealed motor with Class B windings

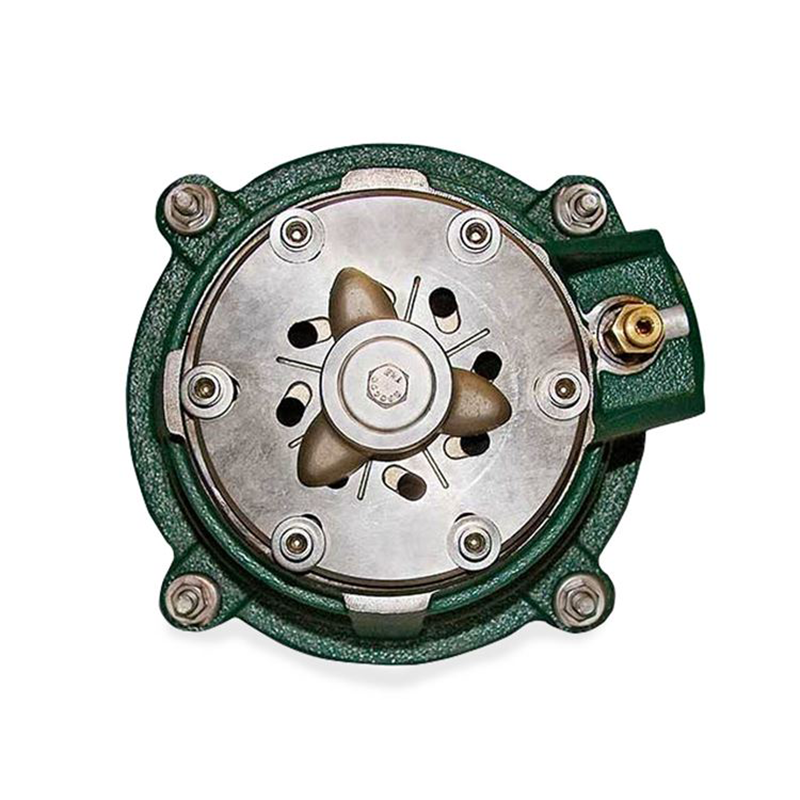

• Hardened stainless steel cutter and disc, Rockwell C55-60
• Preassembled systems available
• Carbon/ceramic tandem seals
• Hydraulic stainless steel rotor and Buna N stator
• Corrosion-resistant, powder-coated epoxy finish
• 20 ft. (6m) power cord, 25', 35' and 50' (8m, 11m, 15m) options available

Specifications:

• Brand: Zoeller
• Mfg. Number: 810-0004
• Model: E810
• Series: Shark 810
• Product Type: Grinder pump
• Horsepower: 1 HP
• Voltage: 230 Volts
• Operation: Manual
• Phase: 1
• Frequency: 60 Hz
• Speed: 1750 RPM
• Discharge Connection: 1-1/4" NPT
• Insulation Class: Class B
• Pump Housing: Cast iron
• Impeller Design: Hydraulic rotor
• Current: 7.0-12.0 Amps

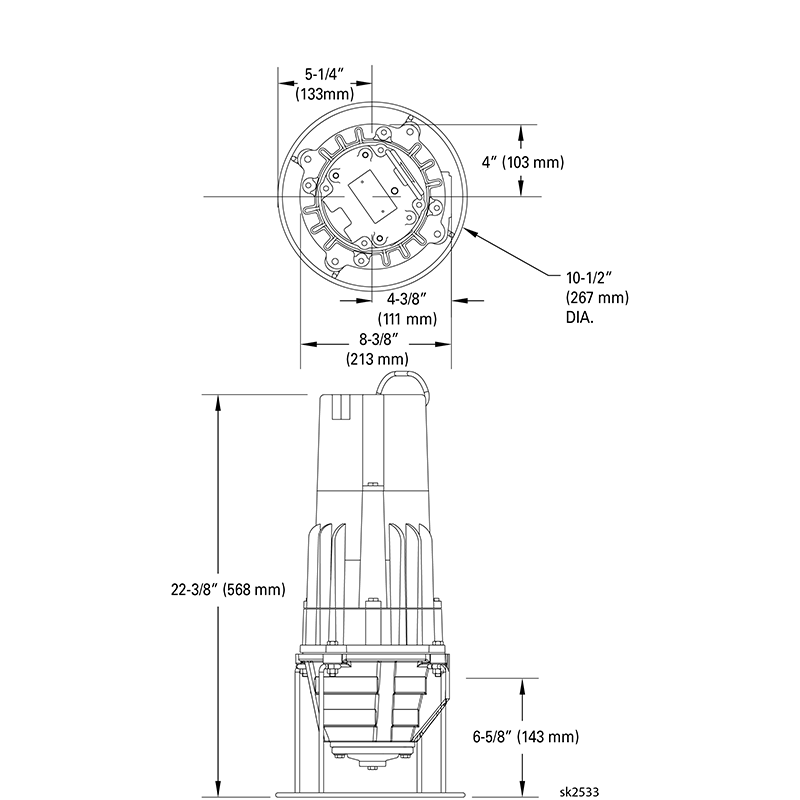

• Product Dimensions: ‎10.5 x 9 x 23 inches
• Power Source: ‎AC
• Material: ‎Stainless Steel

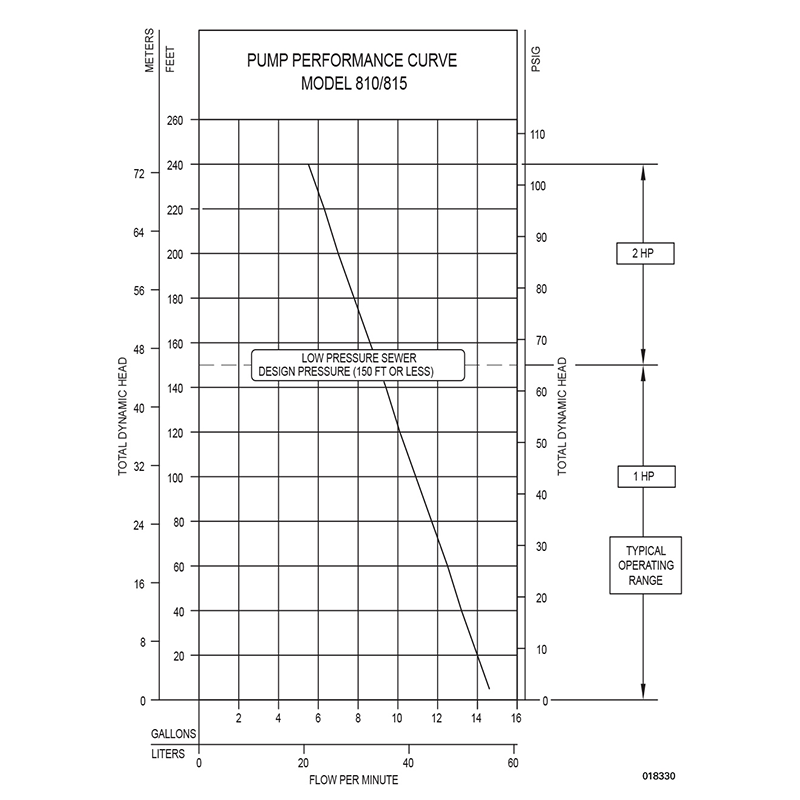

• Flow Rate: ‎14.6 Gallons Per Minute
• Cord Length: ‎20 Feet
