SPI - 90000-590 - Duplex 3 Phase Control Panel

• DUPLEX CONTROL PANEL: 10 H.P. MAX @208/240 VAC, 20 H.P. MAX @480VAC;
• 3PHASE NEMA 4X FIBERGLASS ENCLOSURE WITH INNER DOOR (WALL MOUNT, PADLOCKABLE);
• SINGLE POINT POWER CONNECTION; IEC HP RATED MOTOR STARTERS;
• ADJUSTABLE 'FIT AND CLICK" OVERLOAD MODULES (FIELD INSTALLED, USER DEFINED, OVERLOADS SOLD SEPARATELY):
• PUMP SHORT CIRCUIT DISCONNECT AND OVERLOAD RESET ACCESSIBLE THROUGH INNER DOOR;
• TRI-VOLTAGE STEP-DOWN CONTROL TRANSFORMER;
• SEPARATE ALARM AND CONTROL FUSES;
• OVERRIDE CIRCUIT TO OPERATE LAG PUMP IF LEAD FLOAT FAILS;
• STATION VIEW CONTROLLER (ALTERNATING PUMP CONTROLLER);
• PUMP RUN LIGHTS; HAND-OFF-AUTO SWITCHES;
• SEAL FAIL & THERMAL SENSOR CIRCUITS W/AUXILIARY DRY CONTACTS (331)

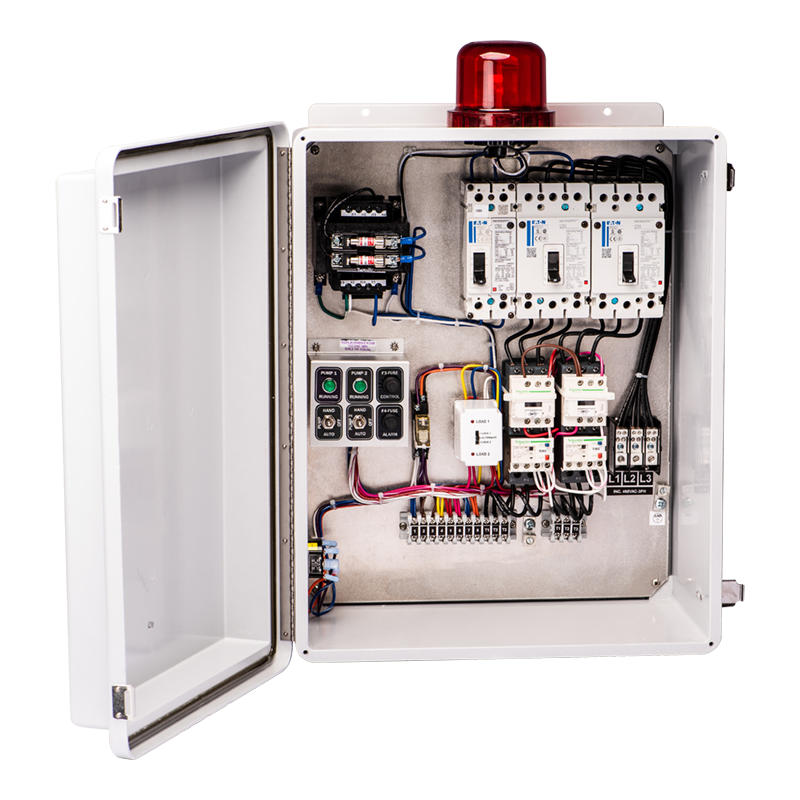

*Note: Image shown is 50A509
