SPI - Observer 400 Indoor/Outdoor High Water Alarm - 10A400-SMD-4H

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR AN ACCURATE LEAD TIME***

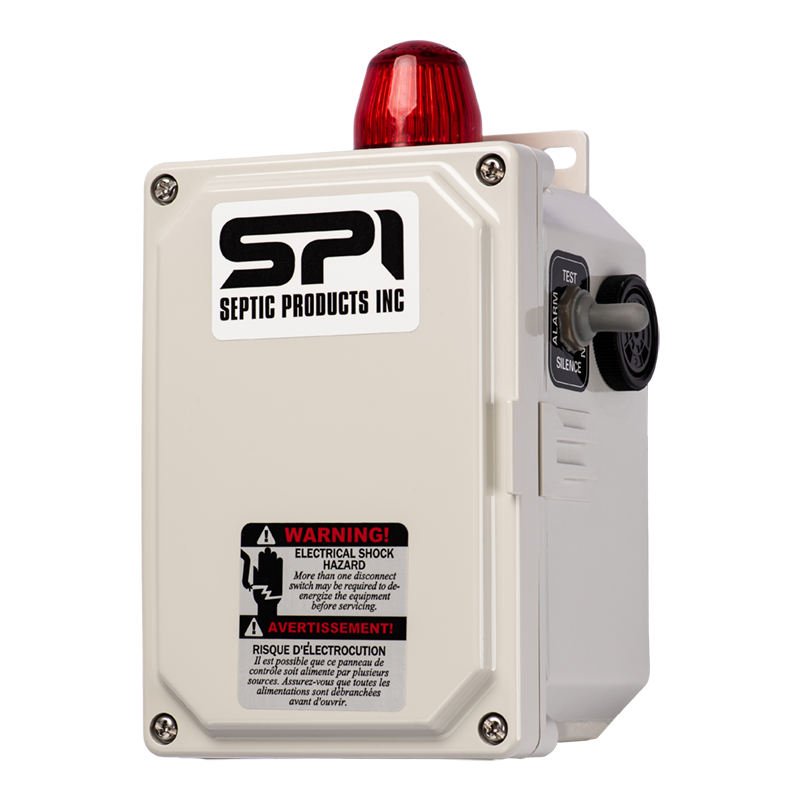

The SPI Observer 400 is a high water alarm rated for indoor and outdoor use. It includes a 15’ mechanical float switch. The box is designed to turn on an audible and visual alarm whenever the float is activated. Indoor/outdoor alarm with large light, audible horn, 15' mechanical alarm float, and auxiliary dry contacts (High Level) Supply Voltage: 120

Features:

• NEMA 4X rated, durable, weather-resistant enclosure for indoor and outdoor use
• Automatic alarm reset, horn silence button, and alarm test button
• 360-degree visible alarm light
• The alarm horn sounds 85 decibels at 10'
• Mechanical alarm float switch included (15' cord)
• Auxiliary dry contacts are standard
• SST mounting screws included
• UL-listed alarm system

Tech Specs:

• Dimensions: 6.0" x 4.0" x 3.5" (external mounting feet)
• Enclosure: NEMA 4X rated, durable, weather-resistant (water-tight)
• Horn: 85 db at 10'
• Weight: 3.5 lbs. with float
• Voltage: 120 VAC primary, 12 VAC secondary, 60 Hz (alarm condition 15 watts max)
• Float Switch Connection: Internal terminal strip
• Alarm Light: 360 degree visible
• Standard Auxiliary Contacts: 240 VAC, 5 amp max resistive/60 Hz

Manuals:
