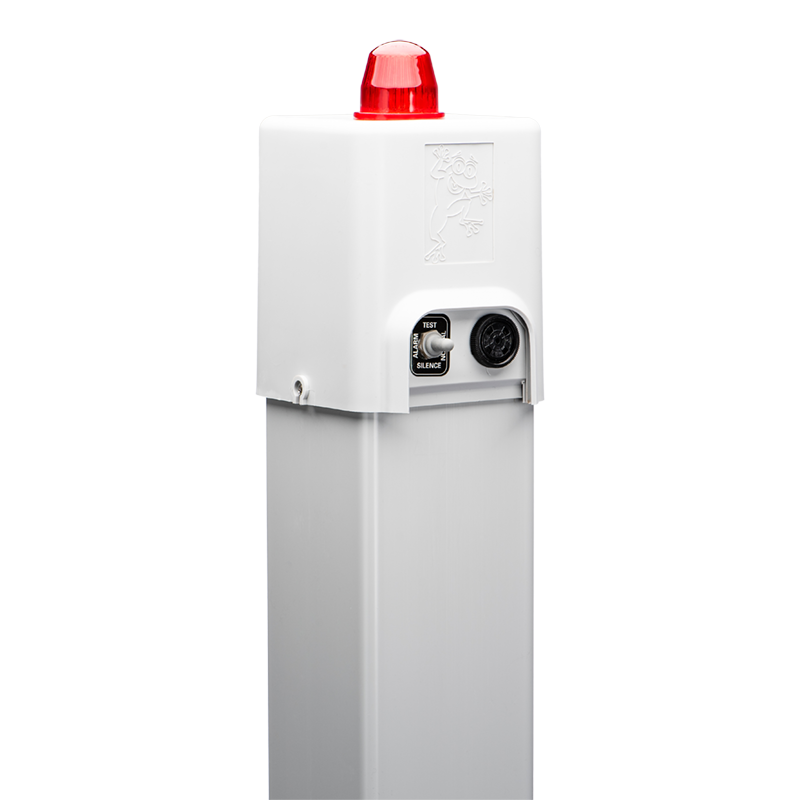

SPI - 120V Pedestal Alarm - 10A100

This Pedestal Alarm System is a water-tight junction box to keep your septic connections safe and secure.

Features:

• New low-profile design with external silence switch
• Easy-to-access cover
• Rugged water-tight enclosure rated for outdoor use
• 120 VAC receptacles for plugging in the pump and switch
• Built-in high water alarm with horn and light (test feature included)
• 120 VAC with 9 VAC battery backup alarm, complete with automatic reset
• Spacious panel designed with 120 VAC pump power supply and 120 VAC alarm power
• Mechanical alarm float switch with 20' cord
• Large access port with gas/liquid tight seal for cord connections
• Test-normal-silence switch (external)
• Auxiliary contacts standard
• Optional push breaker, cycle counter, etm
• Two-year limited warranty

Tech Specs:

• Enclosure Dimensions: 6" x 6" x 7"
• Overall Dimensions: 6" x 6" x 35"
• Enclosure: NEMA 3R, UV-protected PVC rated for outdoor use
• Horn: 85 db at 10'
• Battery Backup: 9 VDC for alarm horn
• Light: 10 watts 120 VAC
• Receptacle: 120 VAC
• Full Load Amps: 12
• Weight: 11 lbs.
• Alarm Float: 20' mechanical float (normally open)
• Pump Voltage: 120 VAC, 60 Hz single phase
• Alarm Voltage: 120 VAC, 60 Hz single phase
• Standard Auxiliary Contacts: 240 VAC, 5 amp max resistive/60 Hz
