SPI - 240V Pedestal Alarm - 10A101

Name: SPI - 240V Pedestal Alarm - 10A101
Brand: Wastewater Supply
Price: 307.34 USD
Availability: InStock

$307.34 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR AN ACCURATE LEAD TIME***

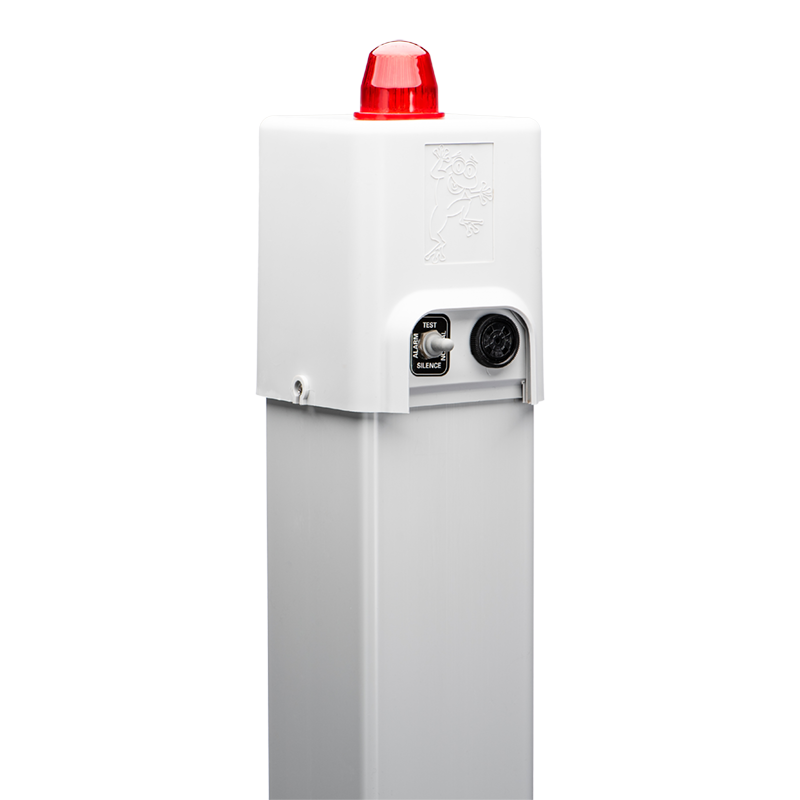

Pedestal alarm with large light, alarm auxiliary contacts, audible horn, 240 V pump receptacle, 9 V battery back-up, 20′ alarm float, and external silence switch.

Features:

New low-profile design with external silence switch
Easy-to-access cover
Rugged water-tight enclosure rated for outdoor use
120 / 240 VAC receptacles for plugging in the pump and switch
Built-in high water alarm with horn and light (test feature included)
120 VAC with 9 VAC battery backup alarm, complete with automatic reset
Spacious panel designed with 120 VAC or 240 VAC pump power supply and 120 VAC alarm power
Mechanical alarm float switch with 20′ cord
Large access port with gas/liquid tight seal for cord connections
Test-normal-silence switch (external)
Auxiliary contacts standard
Optional push breaker, cycle counter, etm
Two-year limited warranty

Technical Specs:

Enclosure Dimensions: 6" x 6" x 7"
Overall Dimensions 6" x 6" x 35"
Enclosure: NEMA 3R, UV-protected PVC rated for outdoor use
Horn: 85 db at 10'
Battery Backup: 9 VDC for alarm horn
Light: 10 watts 120 VAC
Receptacle: 120 VAC or 240 VAC

Full Load Amps: 12
Weight: 11 lbs.
Alarm Float: 20' mechanical float (normally open)
Pump Voltage 120 / 240 VAC, 60 Hz single phase
Alarm Voltage: 120 VAC, 60 Hz single phase
Standard Auxiliary Contacts: 240 VAC, 5 amp max resistive/60 Hz

Manuals:
