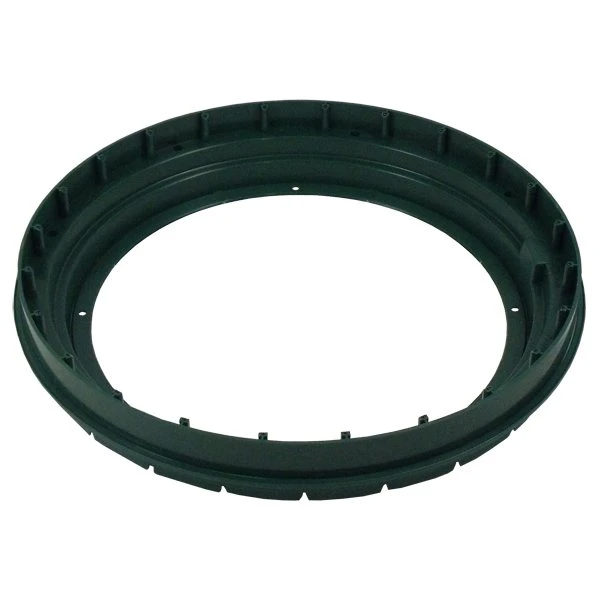

Polylok - 24"x3" Riser Riser Pan - 3008-RP

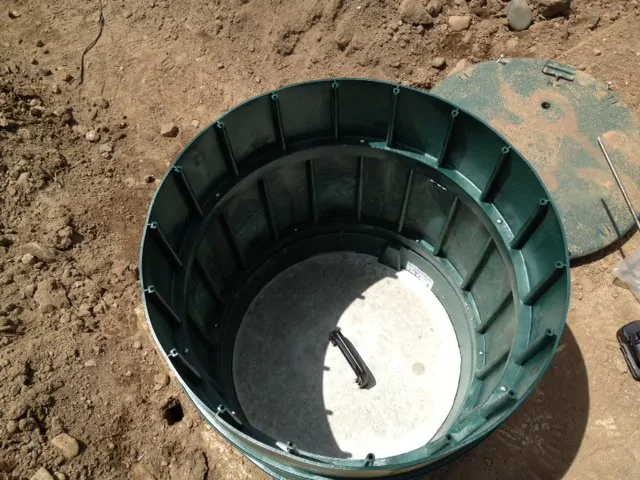

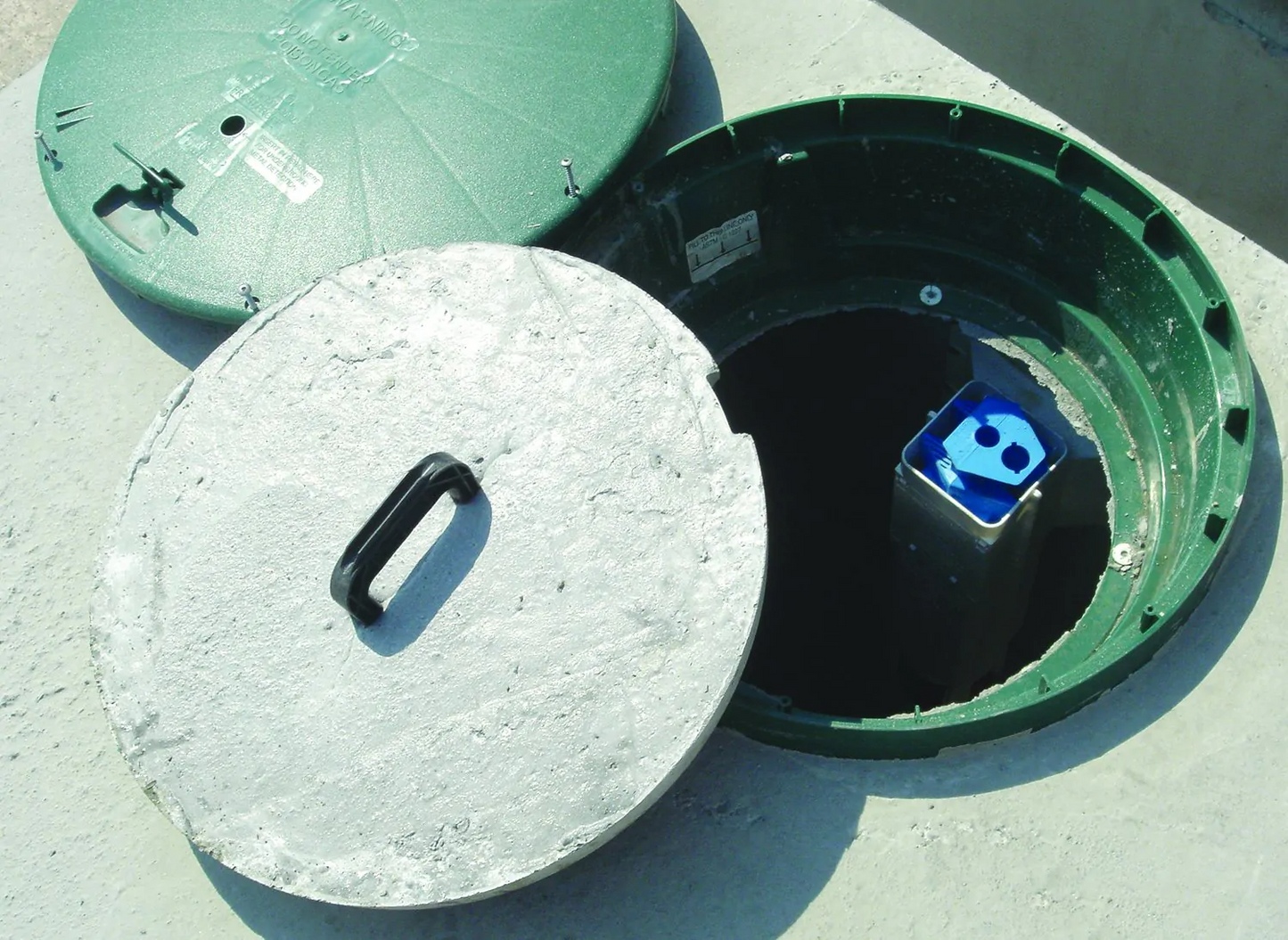

This riser pan provides a built-in 59 lb. concrete plug for additional safety. This built-in safety plug will act as a secondary layer of protection if the riser cover is unknowingly damaged, removed, or not put back on. It accepts additional 24'' Polylok risers to bring to grade.

Details

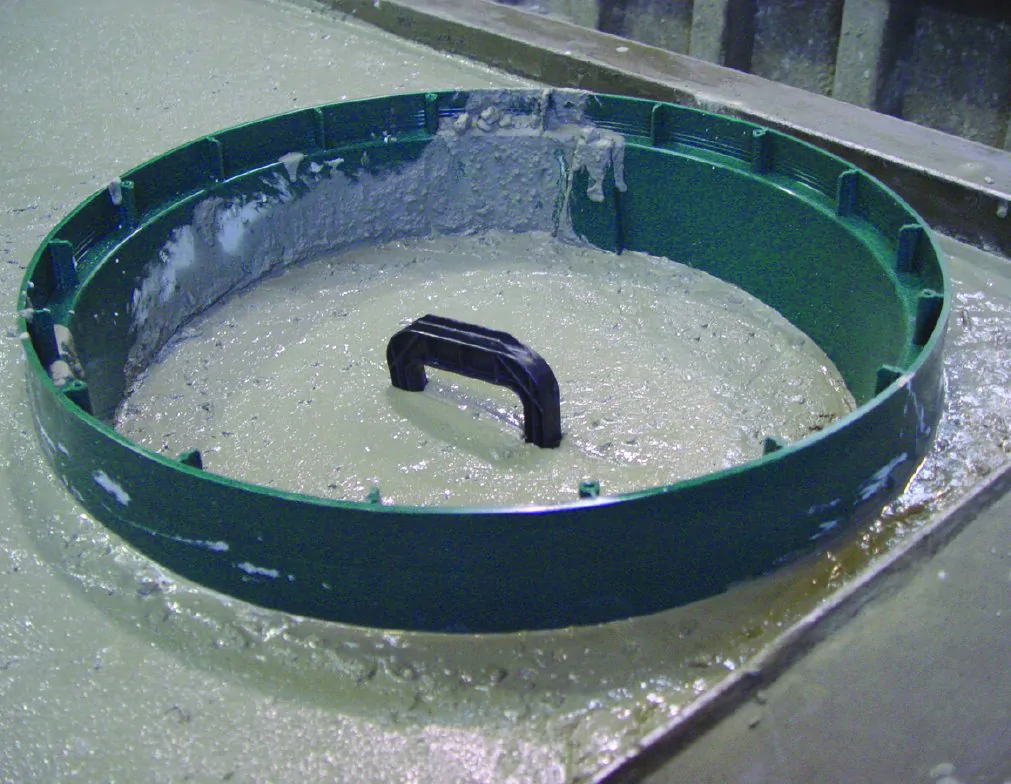

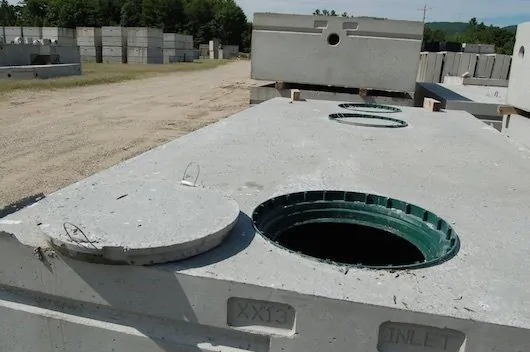

• Allows tank, riser, and tank lid to be poured together
• Accepts additional 24'' Risers to bring to grade for servicing
• Pan has key-way for positive concrete lid positioning
• Pan is held in perfect alignment on the inner core of mold with four mold fastening nails for fast installation
• Patented ring to guarantee watertight and airtight seal between concrete tank and riser
• Fits anywhere in the Riser stack
• Can be used as a 3" Riser
• Accepts Polylok covers (part numbers 3008-RC, 3008-HD & 3008-WEST)
• 59 lb. plug meets ASTM C-1227 standard specifications for precast concrete septic tanks
