Wastewater Supply

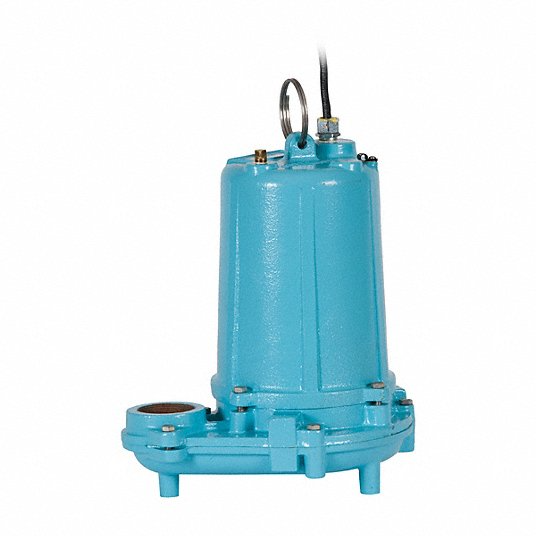

Little Giant - WS50M-20 - 620231

Little Giant - WS50M-20 - 620231

Regular price $575.00 USD
Regular price Sale price $575.00 USD
Sale Sold out
Shipping calculated at checkout.

The Little Giant submersible effluent pump is specifically engineered to handle the tough demanding tasks of wastewater and effluent waste transfer with high efficiency and long-term dependability.

Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands such as dewatering, effluent waste, wastewater, and handling where such materials must be moved upward from a collection area to sewer lines, septic lines, or drainage areas.

Features:

  • 1/2 HP motor with overload protection
  • Designed for hi-torque with automatic reset
  • Cast iron motor and pump housing
  • Stainless steel heat-treated shaft
  • upper and lower ball bearings
  • Mechanical carbon/ceramic shaft seal
  • Handles 3/4" solids
  • cCSAus Listed

Tech Specs:

  • HP: 1/2
  • Rated Voltage: 115V AC
  • Hz: 60 Hz
  • Phase - Pumps: 1
  • Amps: 11.6 A
  • Body Material: Cast Iron
  • Impeller Material: Cast Iron
  • Shaft Seal Material - Pumps: Carbon; Ceramic
  • Switch Actuation: No Switch Included
  • Switch Electrical Connection: No Switch Included
  • Flow Rate @ 10 Ft. of Head: 90 gpm
  • Flow Rate @ 15 Ft. of Head: 80 gpm
  • Flow Rate @ 20 Ft. of Head: 64 gpm
  • Max. Head: 42 ft
  • Min. Sump Pit Diameter: 18 in
  • Body Diameter: 9-3/8 in
  • Width at Widest Point: 12-1/4 in
  • Overall Height: 13-3/4 in
  • Cord Length: 20 ft
  • Discharge: 2 in FNPT
  • Max. Diameter Solids: 3/4 in
  • Max. Liquid Temp.: 120 °F
  • Duty Cycle: Continuous; Intermittent
  • RPM: 3,450 RPM
  • Agency Compliance: cCSAus Listed
  • Manufacturers Warranty Length: 3 yr
  • UNSPSC: 40151512
  • Country of Origin: Mexico (subject to change)
