Little Giant - VCL-45ULS - 553240

Description

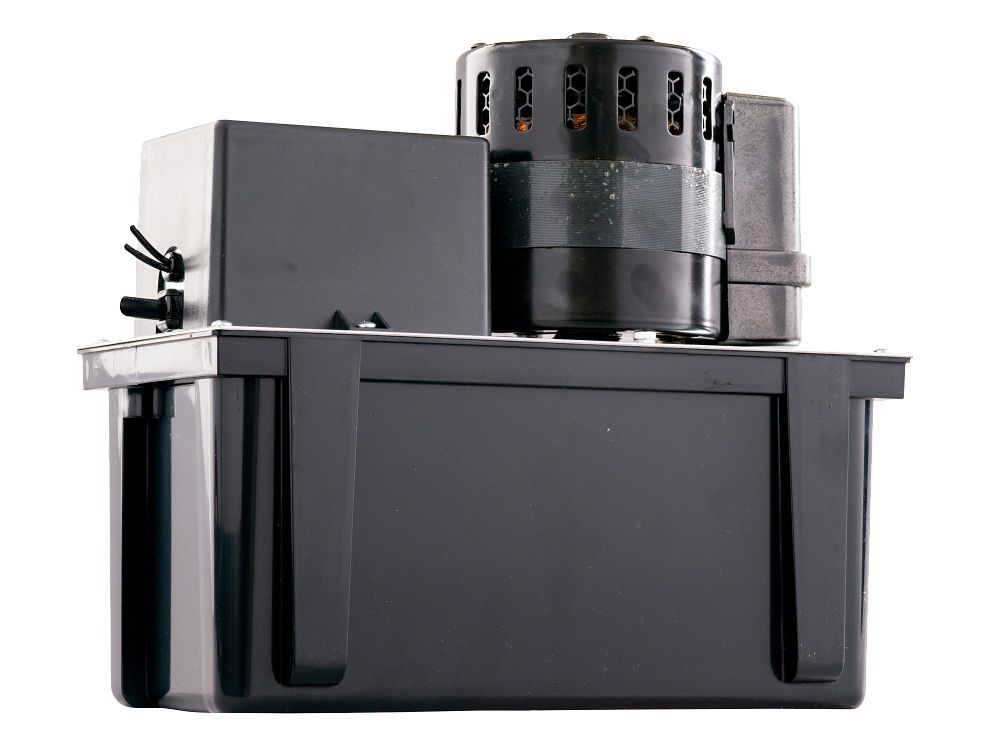

The Little Giant VCL-45ULS large-capacity condensate pump is ideal for collecting, detecting, and automatically removing condensate from air conditioning equipment, dehumidifiers, high-efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.

The VCL-45ULS condensate pump is a vertical-type pump unit with a 1-gallon tank capacity for commercial condensate removal applications. With a flow rate of 450 gph, the VCL-45 Series pump is rated for high-efficiency gas furnace applications that produce acidic condensate. The included safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow.

Features & Benefits

• 1/5 hp, fan-cooled, concentric motor
• Galvanized steel tank cover
• ABS tank, volute, and switch cover
• 1-gallon tank capacity
• Stainless steel shaft
• Thermally protected to protect against overheating and potential motor damage

Tech Specs

• Motor - 1/5 HP
• 1-gallon tank capacity
• Intermittent Liquid Temp. up to - 120°F
• Flow - 450 GPH @ 1' of Head
• Discharge - 3/8" O.D.
• Housing - N/A
• Cover - Galvanized steel
• Motor Shaft - Stainless steel
• Shaft Seal - N/A
• Screen - ABS
• Cord Length - 6 ft
• Weight - 13 lbs
• Height - 10.5"
• Width - 6"
• Length - 12"
• Volute - ABS
• Impeller - Polypropylene
• Electrical - 115 V, 60 Hz, 3.5 Amps, 185 Watts, thermally protected motor
