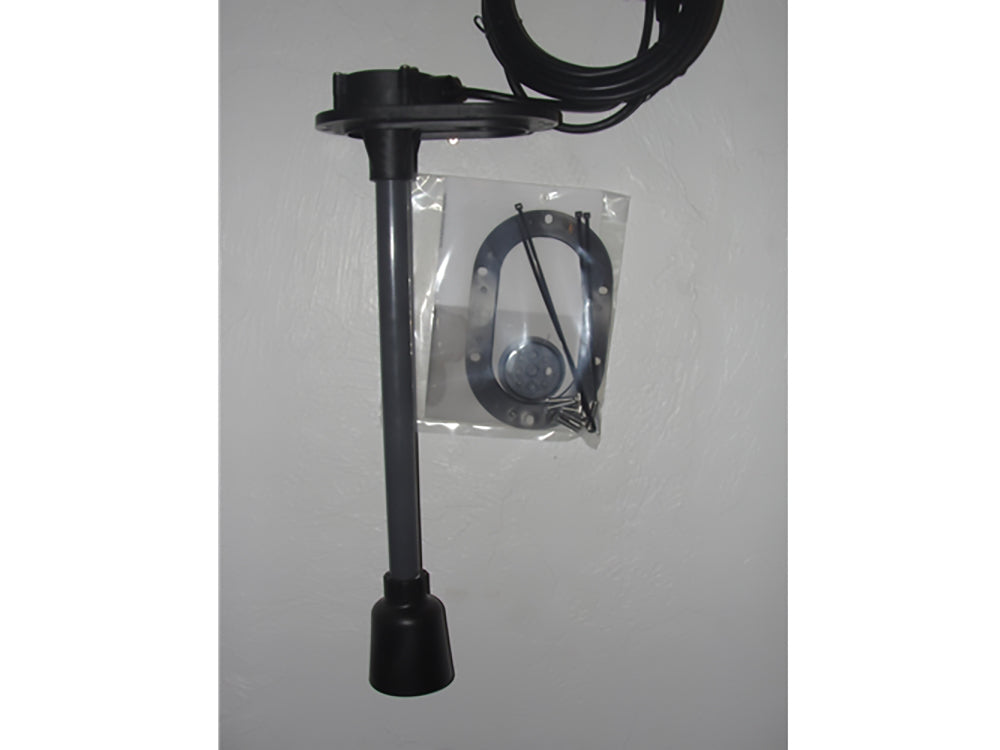

Little Giant - 513637 - ECM Assembly for Pit + Plus JR system (Includes tube and bell)

The Little Giant 513637 PPJENA is an External Control Module (ECM) assembly for the Pit+ Plus Jr series. This ECM assembly is an innovation by Little Giant that aims to eliminate ‘hang-ups’ by way of separating the ECM switch from the pump itself.

Due to this advanced design, the Little Giant 513637 PPJENA greatly reduces the chance of water intrusion -- further reducing the likelihood of switch failures. For additional function and security, this Little Giant 513637 PPJENA is also available with alarm hardware that is designed to monitor the liquid level inside the basin.

Features

• Switch Type: External Control Mode
• Voltage: 115VAC
• Max. Pressure: 18 psi
• Float Switch On Point: 9" to 14" Above Base
• Float Switch Off Point: 2" to 6" Above Base
• Max. Liquid Temp.: 120 Degrees F
• Max. Wattage: 1150
• Max. Pressure (PSI): 18
