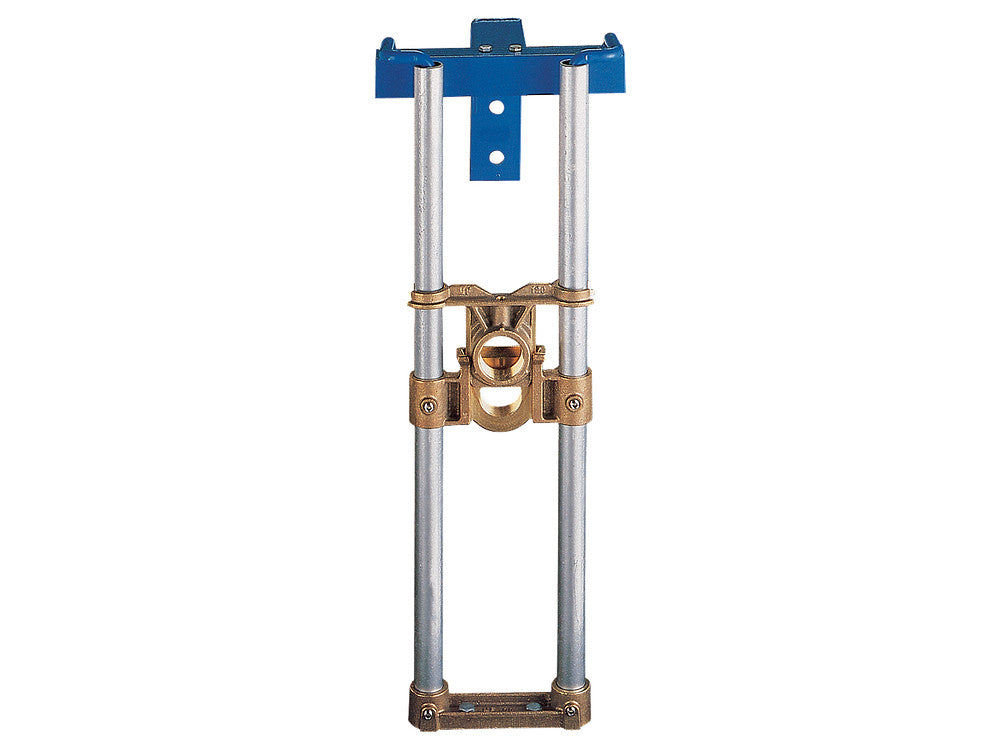

Little Giant - 513300 - GR0-1 1-1/4 Guide Rail System with 3" NPT

1-1/4" Guide Rail System with 3" NPT used for installations with a total depth of over 5' when the discharge pipe is 18" or more below grade, particularly when the liquid level is above the discharge level.

Features

• 3/4" IPS pipe rails should be used on the 1-1/4" and 2" system and 1-1/4" IPS pipe rail on the 3" system
• Brass foot guide supplied for use with steel pipe
• Guide rail brackets and steel stand-off brackets are included with each system to support the upper end of the guide rail pipes
• One intermediate guide rail bracket is required for every 10' of rail
