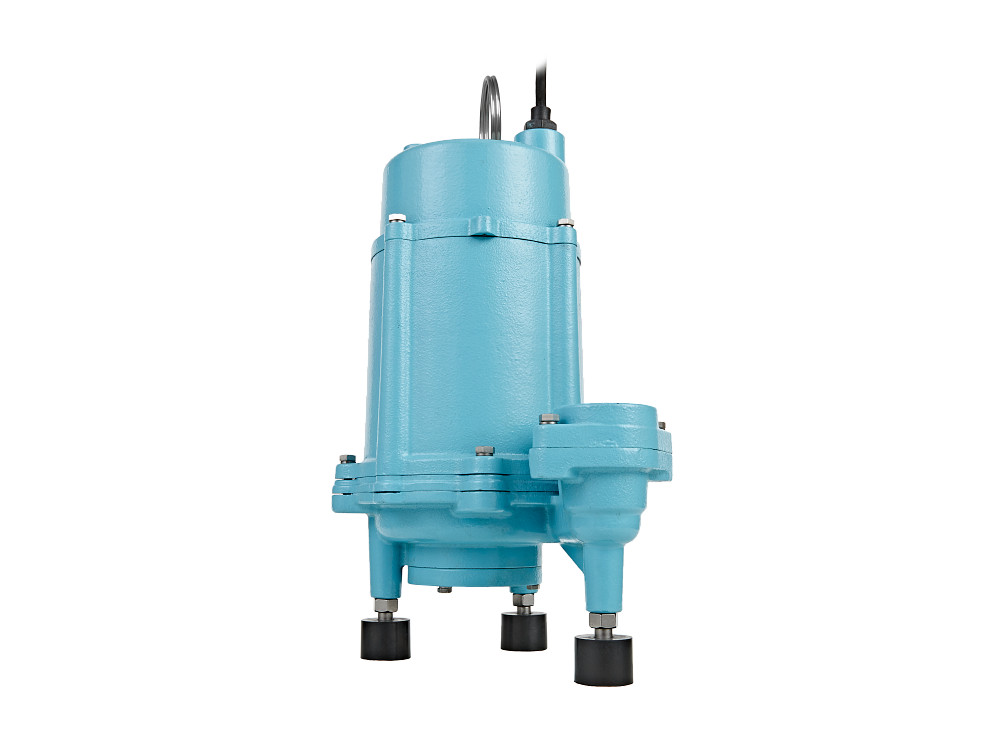

Little Giant - 16G-M151-20 - 509809

Little Giant 16G Series

Offered in 115V and 230V, the 16G Series 1 hp Grinder Pump is designed as a new or replacement grinder pump for the toughest residential and light commercial wastewater applications.

Applications

• Ideal for use as a drop-in replacement for any effluent or sewage pump struggling with clogs and binding.
• Available as a standalone grinder or in a Pit+Plus package configuration.
• Heavy-duty 1 hp Class F motor provides optimal power to prevent flushable and other debris from causing clogs and downtime.
• Superior grinding capability with proven results based on the patented cutting mechanism renowned in Franklin Electric's 2 hp grinder pump.
• 27 stationary blades and 8 rotating blades produce 3450 RPM and 745,200 cuts per minute.
• 1-1/4" discharge and 2" NPT adapter discharge preassembled onto the pump for ultimate versatility.
• Silicon carbide mechanical seal provides up to six times longer seal life with lower thermal expansion and higher abrasion resistance when compared to carbon ceramic seals.
• Easily replaceable, 20' power cord is sealed at the connection point for unit protection.
• Non-skid adjustable legs for stability and vibration dampening to allow for quieter operation.
• Vertical and tethered float switch options are available on 115 and 230V models.
• Also available as a packaged system with Pit+Plus Jr or Pit+Plus Sr.

Specifications

• HP: 1hp
• Frequency 60Hz
• Phase: Single-Phase
• Amps Full Load: 12.5A
• Amps - Starting 65A
• Volts: 115VAC
• Cord Length: 20ft
• Lead Length: 20ft
• Continuous Duty: Yes
• Maximum Flow Rate: - 60Hz 52gpm / 3120gph
• Minimum Flow Rate: - 60Hz 9gpm / 540gph
• Shut-Off: 51ft
• Minimum Head: 60Hz 0ft
• Shut Off Height: 60Hz 53ft
• Motor Cooling: Fully Submerged
