Franklin Electric - IGPHR-A-RFK - 515804

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR AN ACCURATE LEAD TIME***

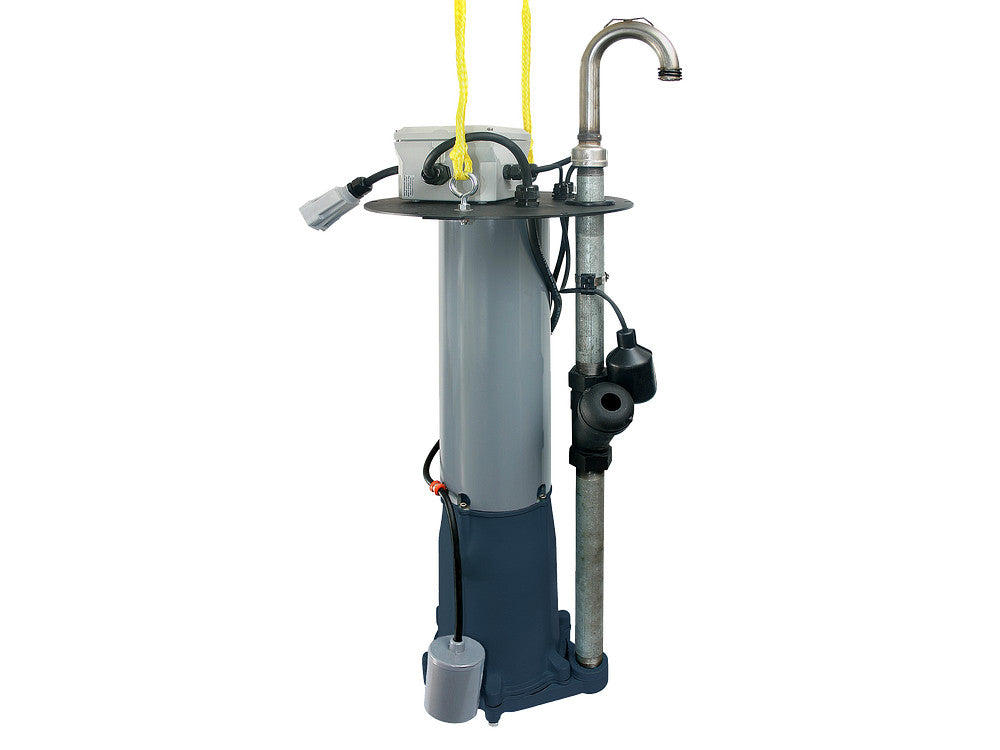

Direct simplex replacement grinder for positive displacement grinder systems.

Features:

• Vertical 1-1/4" FNPT discharge

• Fast, simple, and easy installation

• Epoxy-coated steel cover

• Watertight junction box for ease of installation and servicing
• 1-1/4" cast iron anti-siphon/check valve

• 1-1/4" NPT (SST) piping

• Adjustable alarm float switch preset at the factory
• 2 hp, 3450 rpm, high starting torque, automatic grinder pump with mechanical float switch
• Tight-cutting clearances for superior cutting action, grinding 414,000 cuts per minute
• Quick disconnect plug

• Lightweight
• Rigid construction for ease of handling

Tech Specs:

• HP: 2 hp

• Frequency: 60 Hz

• Phases: Single-Phase

• Volts: 230VAC
• Lead Length: 20ft
• Continuous Duty Yes

• Motor Insulation Classification F
• Maximum Flow Rate - 60Hz 30 gpm

• Minimum Flow Rate - 60Hz 9 gpm

• Shut Off: 180 ft

• Minimum Head - 60 Hz 100 ft

• Shut Off: 200 ft

• Motor Cooling Fully Submerged
• Flow Rate At 100ft 30 gpm

• Pump RPM - 60 Hz 3450
