Franklin Electric - IGPH/R-A231-30 - 515711

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR AN ACCURATE LEAD TIME***

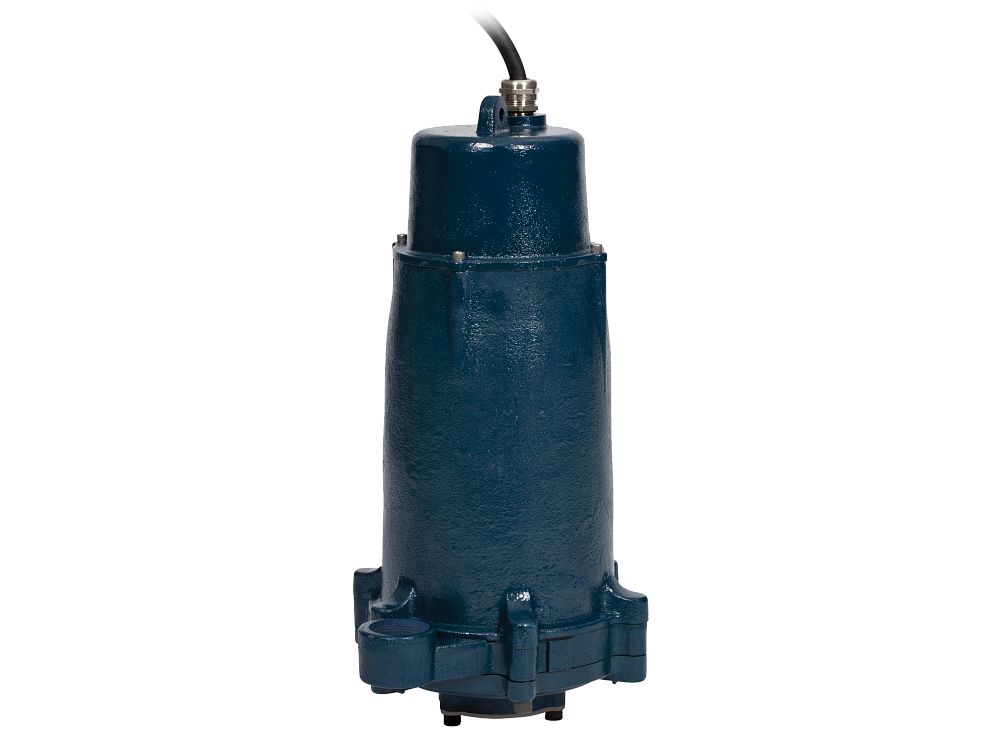

FPS IGPH Manual Series grinder pumps are ideal for residential and light commercial sewage waste transfer where higher head conditions exist.

Features:

• Vertical 1-1/4" FNPT discharge
• Dual stage hydraulics
• Externally-mounted start components*
• Carbon/Ceramic mechanical seal
• Deflection-resistant, short motor shaft
• Corrosion-resistant upper and lower brass impellers minimize downtime and maintenance
• Tight-cutting clearances for superior grinding at 414,000 cuts per minute
• Epoxy-coated finish for corrosion resistance and durability
• Built-in overload protection prevents over-current and over- temperature damage

Tech Specs:

• Capacity 33GPM @ 10'
• Shut Off 130' (39.6 m)
• Max. Liquid Temp. 140 °F (60 °C)
• Discharge 1-1/4" (31.75 mm) Vertical FNPT
• Impeller Brass
• Electrical 208-230 V, 60 Hz, 13.9 A, Single Phase

*The IGPDS Series requires a specific control panel or capacitor kit from FPS that is matched to the pump for proper operation and third-party approval.
