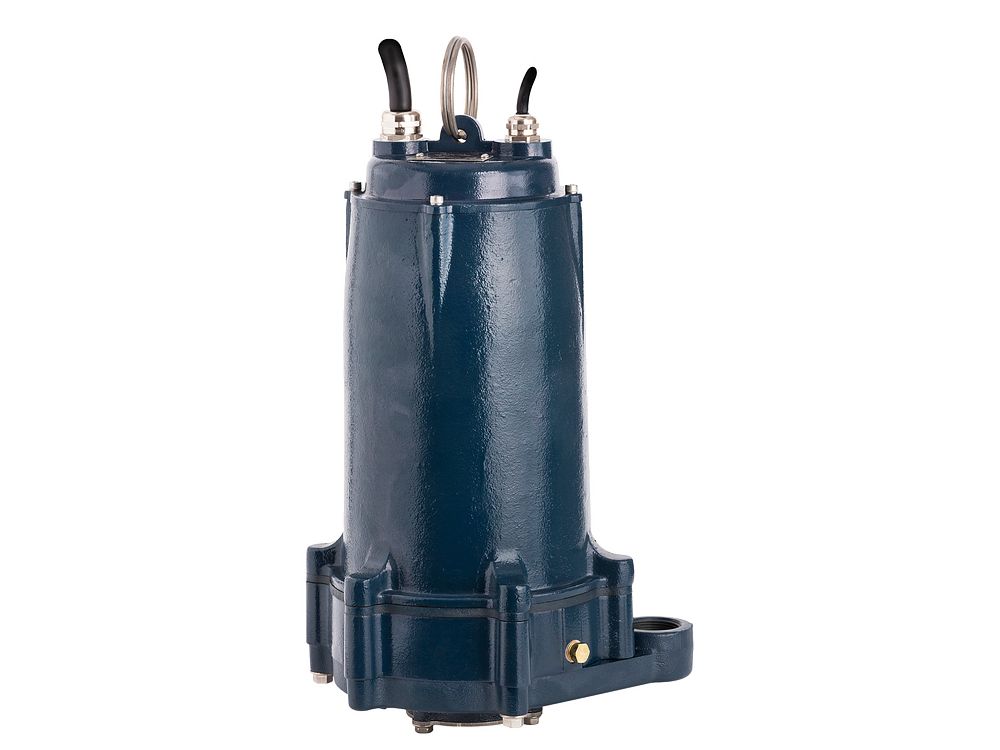

Franklin Electric - IGPDS-M233-30 - 515724

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR AN ACCURATE LEAD TIME***

The Dual Seal IGPDS Series Grinder Pump utilizes two mechanical seals, coupled with a sensor probe and seal leak detection circuitry in the panel, to provide added pump protection that can extend the overall pump life. The Series also features a reliable patented cutter system at 414,000 cuts per minute. The IGPDS Grinder Pump is ideal for commercial and high-end residential applications.

Features:

• Vertical 1-1/4" FNPT discharge
• Upper and lower mechanical seals minimize downtime and maintenance
• Sensor probe designed to indicate early leak detection
• Externally-mounted start components
• Corrosion-resistant brass impeller
• Tight-cutting clearances for superior grinding at 414,000 cuts per minute
• Epoxy-coated finish for corrosion resistance and durability
• Built-in overload protection prevents over-current and over-temperature damage
• The IGPDS Series requires a specific control panel or capacitor kit from FPS that is matched to the pump for proper operation and third-party approval.

Tech Specs:

• Capacity: 33GPM @ 10'
• Shut Off: 130' (39.6 m)
• Max. Liquid Temperature: 140 °F (60 °C)
• Discharge: 1-1/4" (31.75 mm) Vertical FNPT
• Impeller: Brass
• Electrical: 208-230V, 60Hz, 10A, Three Phase
