Franklin Electric - IGP-M231-30 - 515879

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR AN ACCURATE LEAD TIME***

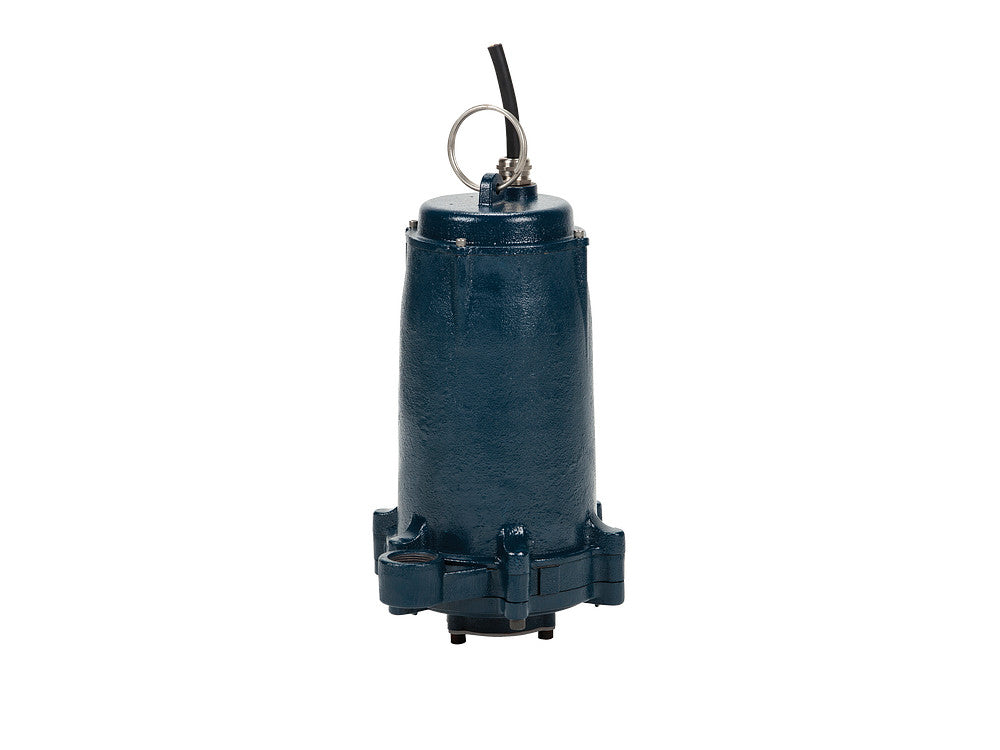

FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer with high head conditions.

Features:

• Vertical 1-1/4" FNPT discharge
• Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage
• Externally-mounted start components
• Carbon/Ceramic mechanical seal
• Deflection-resistant, short motor shaft
• Corrosion-resistant brass impeller minimizes downtime and maintenance
• Seven-vane, angled face, non-clogging, balanced impeller
• Tight-cutting clearances for superior grinding at 414,000 cuts per minute
• Epoxy-coated finish for corrosion resistance and durability
• Built-in overload protection prevents over-current and over-temperature damage
• The IGP Manual Series requires a specific control panel or capacitor kit from FPS, matched to the pump for proper operation and third-party approval

Tech Specs:

• Capacity 32 gpm @ 20'
• Shut Off 130' (39.6 m)
• Max. Liquid Temp. 140 °F (60 °C)
• Discharge 1-1/4" (31.75 mm) Vertical FNPT
• Impeller Brass
• Electrical 208-230 V, 60 Hz, 13.9 A, Single Phase
• Operation: Manual
• Cord Length: 30ft
