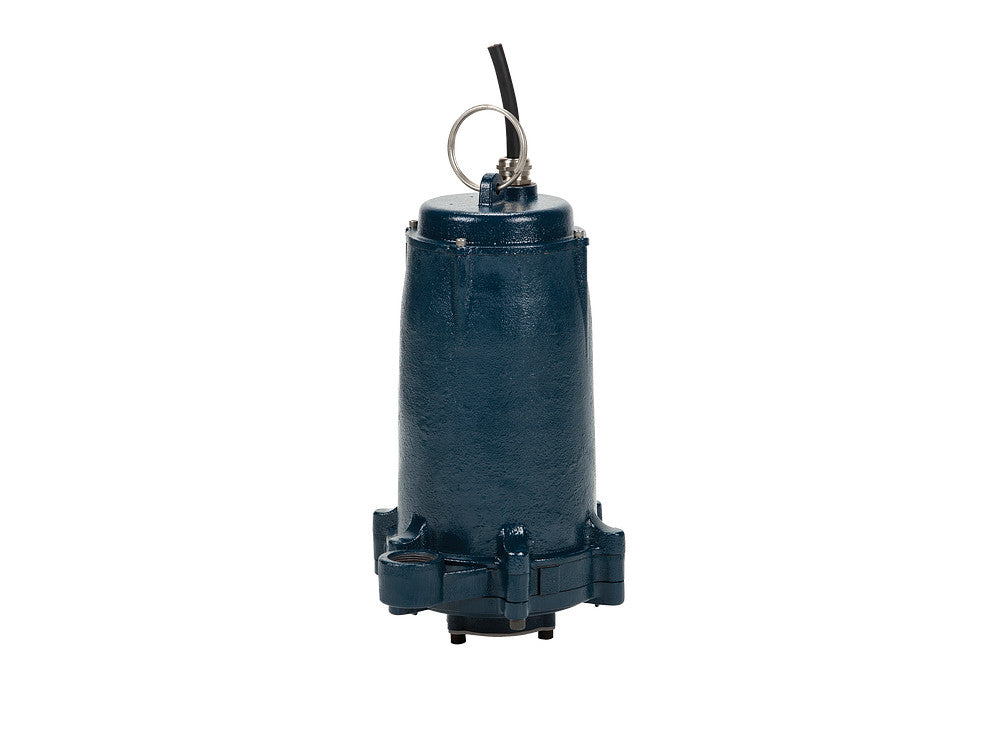

Franklin Electric - IGP-M231-15 - 515864

FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist.

Features:

• Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage
• Externally-mounted start components*
• Carbon/Ceramic mechanical seal
• Deflection-resistant, short motor shaft
• Corrosion-resistant brass impeller minimizes downtime and maintenance
• Seven-vane, angled face, non-clogging, balanced impeller
• Tight-cutting clearances for superior grinding at 414,000 cuts per minute
• Epoxy-coated finish for corrosion resistance and durability
• Built-in overload protection prevents over-current and over-temperature damage

*The IGP Manual Series requires a specific control panel or capacitor kit from FPS, matched to the pump for proper operation and third-party approval.

Tech Specs:

• Brand Franklin Electric
• Mfg. Number 515864
• Pump Type Grinder Pump,
• Model IGP-M231-15
• Series IGP-M Series
• Horsepower Required 2 HP
• Voltage 208-230 Volts
• PSI 56
• Phase 1 Phase
• Product Power Rating 13.9 Amps
• Frequency 60 Hz
