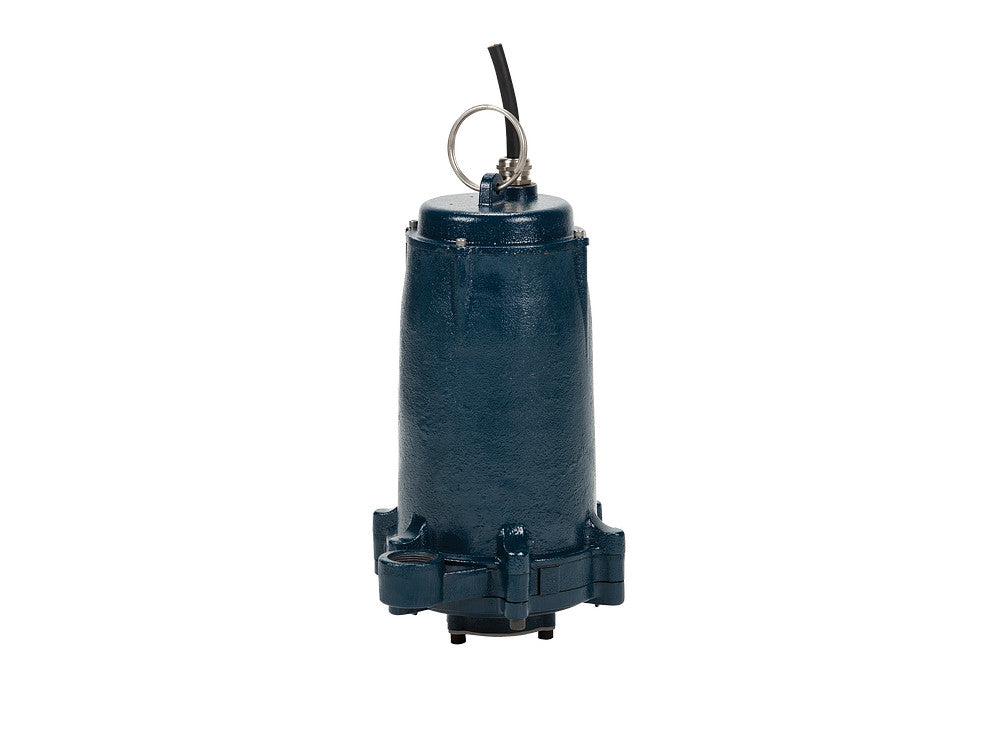

Franklin Electric - IGP-A231-20 - 515862

FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist

Features:

• Vertical 1-1/4" FNPT discharge
• Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage
• Externally-mounted start components
• Carbon/Ceramic mechanical seal
• Deflection-resistant, short motor shaft
• Corrosion-resistant brass impeller minimizes downtime and maintenance
• Seven-vane, angled face, non-clogging, balanced impeller
• Tight-cutting clearances for superior grinding at 414,000 cuts per minute
• Epoxy-coated finish for corrosion resistance and durability
• Built-in overload protection prevents over-current and over-temperature damage
• The IGP Manual Series requires a specific control panel or capacitor kit from FPS, matched to the pump for proper operation and third-party approval

Tech Specs:

• Brand: Franklin Electric
• Mfg. Number: 515862
• Pump Type: Grinder Pump,
• Model: IGP-A231-20
• Series: IGP-A Series
• Horsepower Required: 2 HP
• Voltage: 208-230 Volts
• PSI: 56
• Product Power Rating: 13.9 Amps
• Frequency: 60 Hz
• Cord Length: 20 ft
