Flomatic Valves - CB152101ET - Model CYCLEGARD IV CB152E 1" X 1 1/4" 15-150PSI

Flomatic Valves

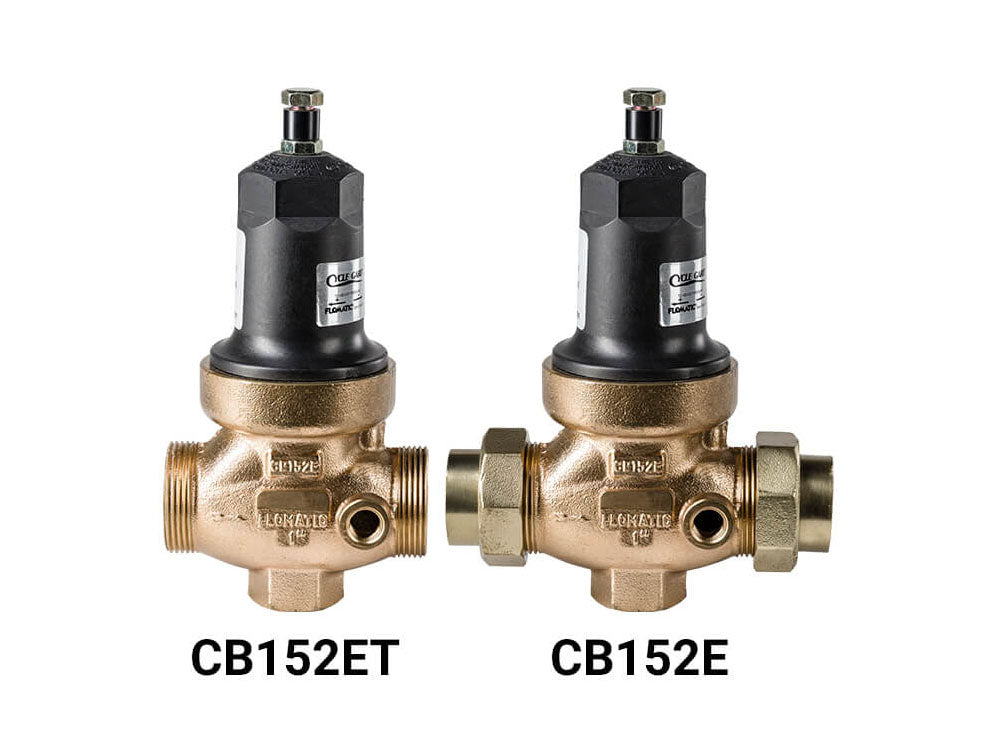

DIRECT ACTING CONSTANT PRESSURE PUMP CONTROL VALVE WITH TAPPINGS - Reduces rapid pump cycling and maintains a pre-set operating pressure for pump systems. Threaded female x female union ends or female I.D. & male O.D. on inlet and outlet connections. Features a flow efficient globe style unleaded alloy body & composite bell housing, Nylon reinforced Buna-N diaphragm. With two (2) ¼" side tappings for gage and pressure switch. One (1) ¾" bottom tapping for water tank. Model CB152E supplied with two FNPT tail-piece and union nuts.

Factory set at 50 PSI

1" MNPT ID & 1 ¼" FNPT OD-Dual purpose
