Flomatic Valves - C150001E - Model C150E 1" 15-75psi

Flomatic Valves

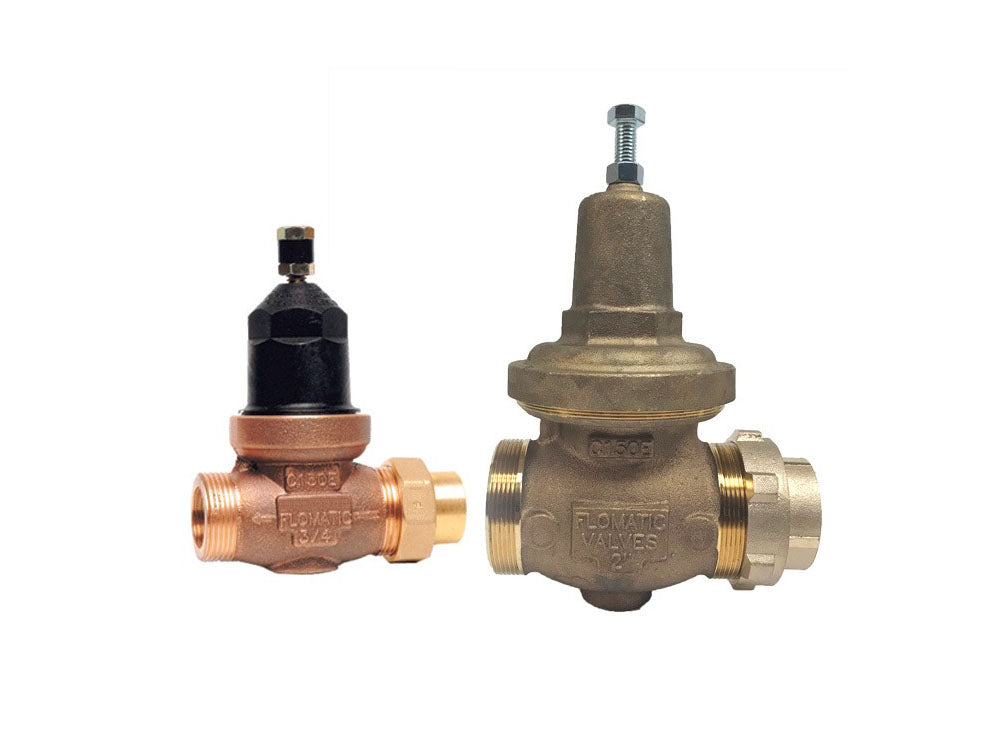

1" Pressure Reducing Valve (PRV) - Model C150E when properly installed will regulate high inlet pressure to a lower regulated outlet pressure within a range regardless of water flow. This is accomplished by an adjustable spring-loaded balancing valve factory set to automatically regulate the downstream pressure. Supplied with one FNPT tail-piece and union nut.

Certified NSF/ANSI 61 1/2" thru 1-1/4"

ASSE 1003 Listed

Temp Max: 180°F (80°C)
Pressure Max: 400 PSI
Factory set at 50 PSI
