Flomatic Valves - 7938MDW8EUPLG - Model 80MDW-VFD Deep Well 3 1/2"

Flomatic Valves

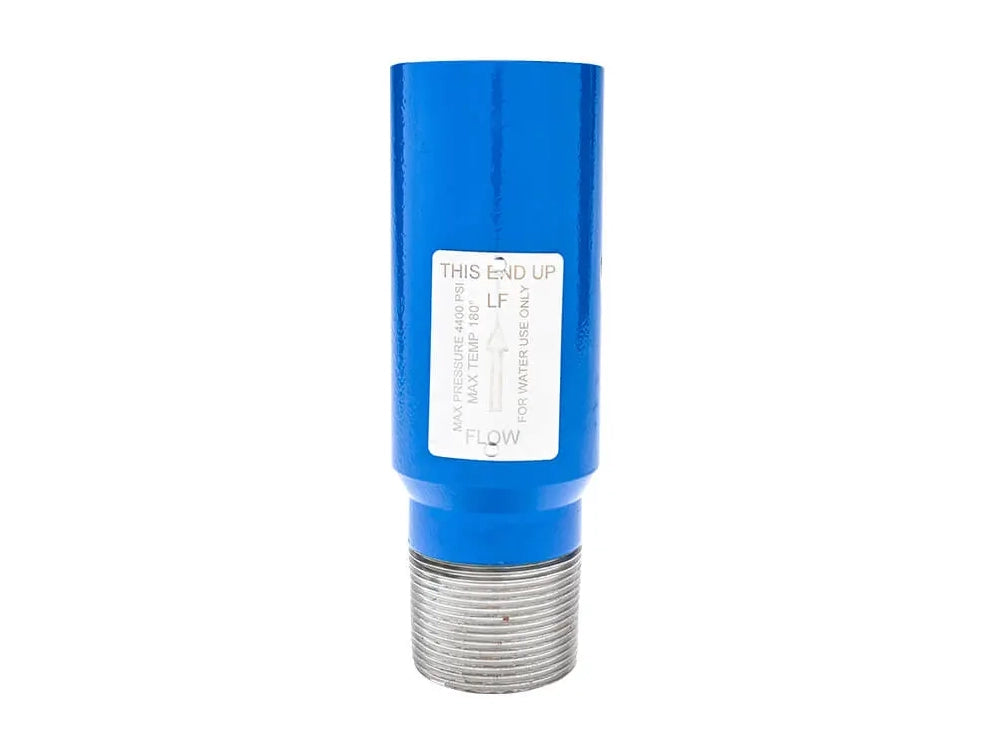

3 1/2" 80MDW-VFD DEEP WELL 8 Round EU (External-Upset) Tubing - High strength epoxy coated carbon steel body, male inlet x female outlet. Metal to metal seat with stainless steel spring /stem with external upset tubing round threads, EU-API 5B Table 7. Standard with break-off plug

Body Pressure Max: 4,400 PSI (API J55 Tubing)

2-3/8" thru 3-1/2" use a 3/8" break-off plug.
4-1/2" thru 9-5/8" use a 3/4" break-off plug.
