Flomatic Valves - 7938 - Model 80DI 3"

Flomatic Valves

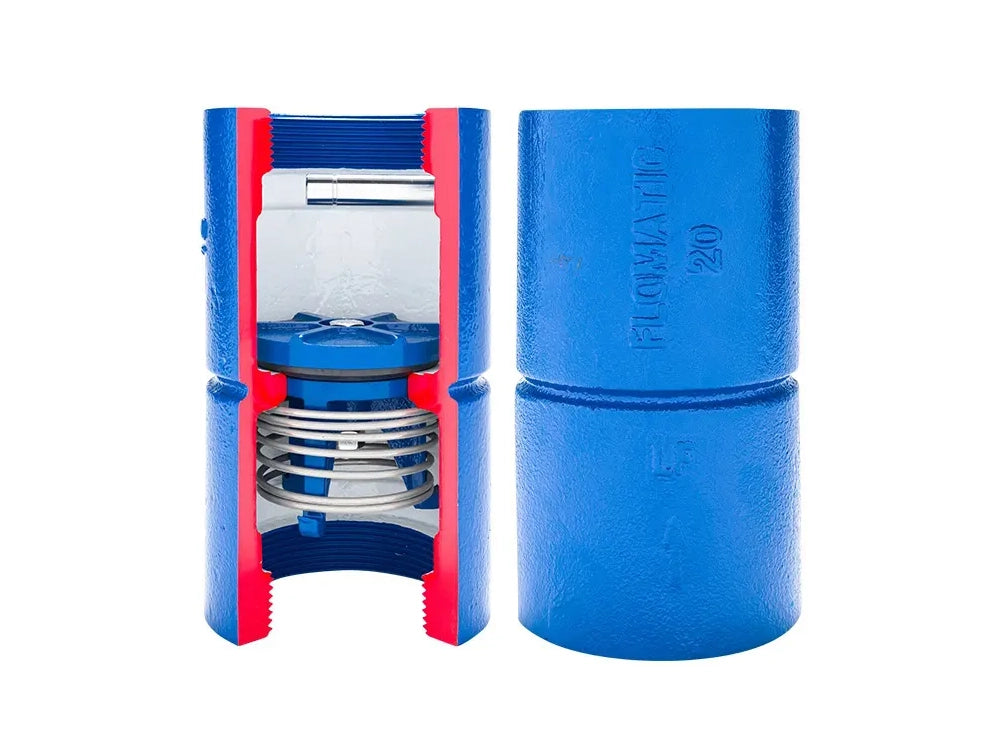

3" 80DI - High strength epoxy coated ductile iron body, disc and follower with threaded female connections. Features a NITRILE (Buna-N) seal, stainless steel spring fasteners, and ductile iron poppet. 2 ½" and larger are recommended for vertical applications. See 80DIX or VFD design for horizontal.

Note: 1" through 1 ½" features acetal poppet.

Pressure Max: 400 PSI: 1-1 1/2"
Pressure Max: 600 PSI: 2-8"
Temp Max: 180°F (80°C)

Literature
