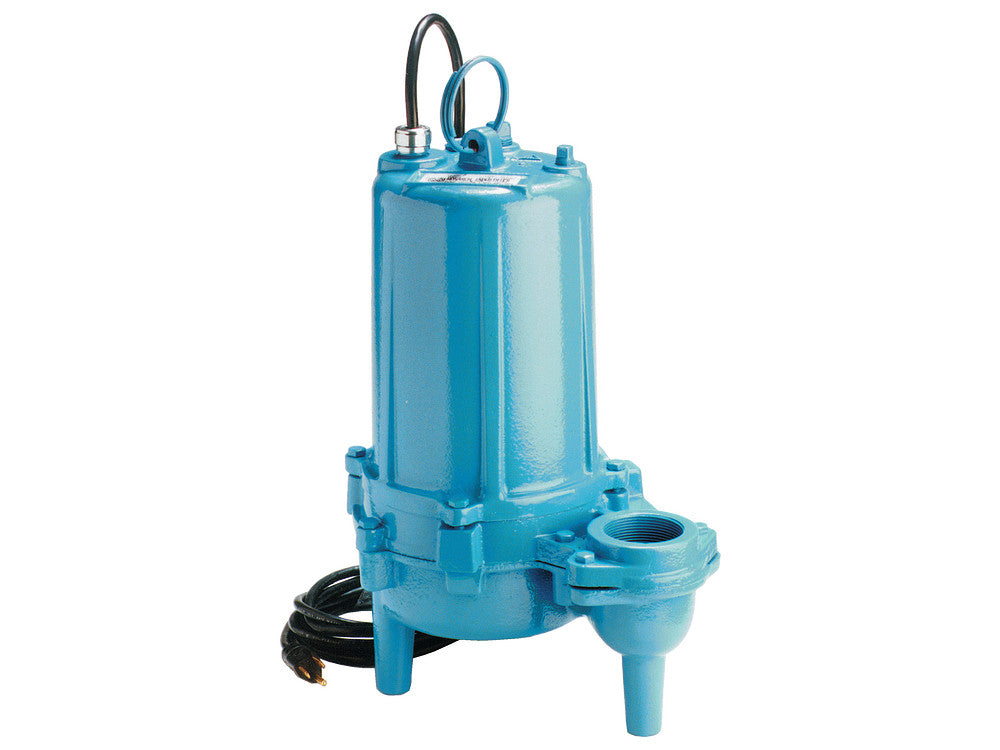

Little Giant - WS52HM - 620254

This submersible sewage pump comes in 1/2hp with 115VAC 60Hz single phase 30ft cord and 2" discharge. Pump capability is 156 Gallon Per Minute At 5 Foot Rise with 29 Foot Max Height. For use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater, and sewage handling, where such materials must be moved upward from a collection area to sewer or septic lines or drainage areas.

Features:

• 1/2 HP motor with overload protection
• Designed for continuous duty
• Designed for hi-torque with automatic reset
• Cast iron motor and pump housing
• 416 Stainless steel motor shaft
• upper and lower ball bearings
• Mechanical carbon/ceramic shaft seal
• Handles 2" solids
• cCSAus Listed

Tech Specs:

• HP: 1/2hp
• Frequency: 60Hz
• Phase: Single-Phase
• Amps: Full Load 15A
• Amps: Starting 26.9A
• Volts: 115VAC
• Cord Length: 30ft
• Motor Type: Submersible
• Continuous Duty: Yes
• Thermal Overload Protection: Yes
• Shut-Off: 29ft
• Stages: 1
• Max Solid Handling Size: 2"
• Switch Type: Manual
• Motor Cooling: Oil
