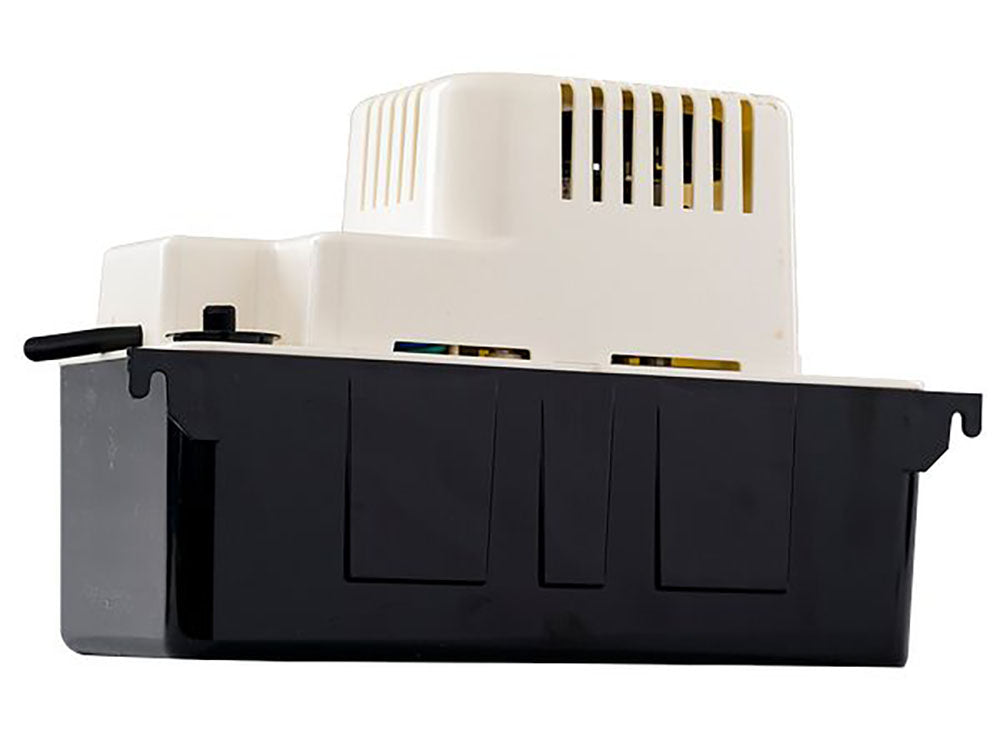

Little Giant - 554425 - VCMA-20ULS 115V 60HZ 6FT

Little Giant - 554425 - VCMA-20ULS 115V 60HZ 6FT

Description

Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

Features:

• Vertical type pump unit
• 1/2 Gallon leakproof, rustproof, ABS tank with mounting tabs
• Stainless steel motor shaft
• Built-in check valve
• Safety switch included - can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
• UL/CSA listed
• Thermal overload protected
• Suitable for high-efficiency, gas furnace condensate

Specifications:

• 3/8" O.D. barbed discharge adapter
• Intermittent Liquid Temp. up to - 120°F
• Discharge - 3/8" OD barbed
• Housing - ABS
• Cover - ABS
• Volute - ABS
• Impeller - Glass filled polypropylene
• 6' power cord
• 3 drain holes
• Electrical - 115 V, 60 Hz, 1.5 Amps, 93 Watts
