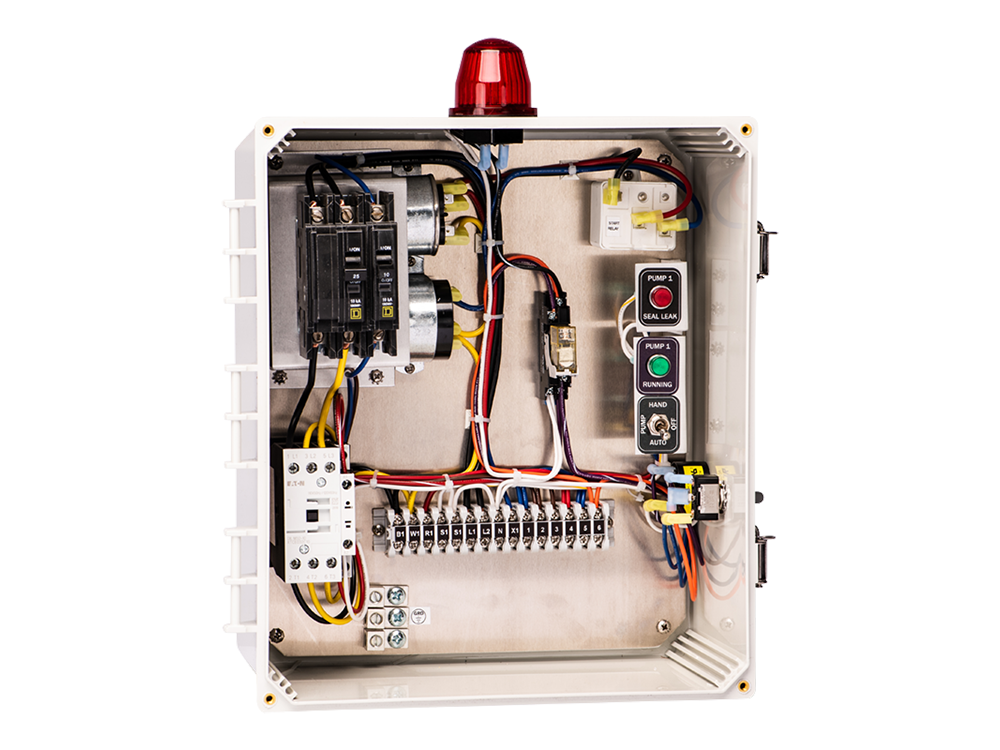

SPI - Franklin Electric IGP-M231 Simplex Control Panel

• 50A700-C6C20-IGP-M231-15-H130-NF

• Available in 208/240VAC-1PH models
• 4X rated durable, weather-resistant enclosure with mounting feet and stainless steel latch
• Circuit breakers for pumps and controls
• IEC-rated motor contactor
• Easy-to-access, finger-safe terminal block
• Start/capacitor kit for specified pump
• Secondary fuse protection
• Pump hand-off-auto switch with pump run light
• Full alarm circuit (visual and audible alarms)
• Alarm test-normal-silence switches
• Color-coded internal wiring
• Connection diagram and schematic
• Three-float system (off, on, high water)
• Three 15' mechanical float switches included
• Built and labeled to UL 508A standard     *Model 50A700 cannot be returned.

** Start/run component supplies are for certain pump models. Please verify pump model, FLA & Capacitor (if known)
