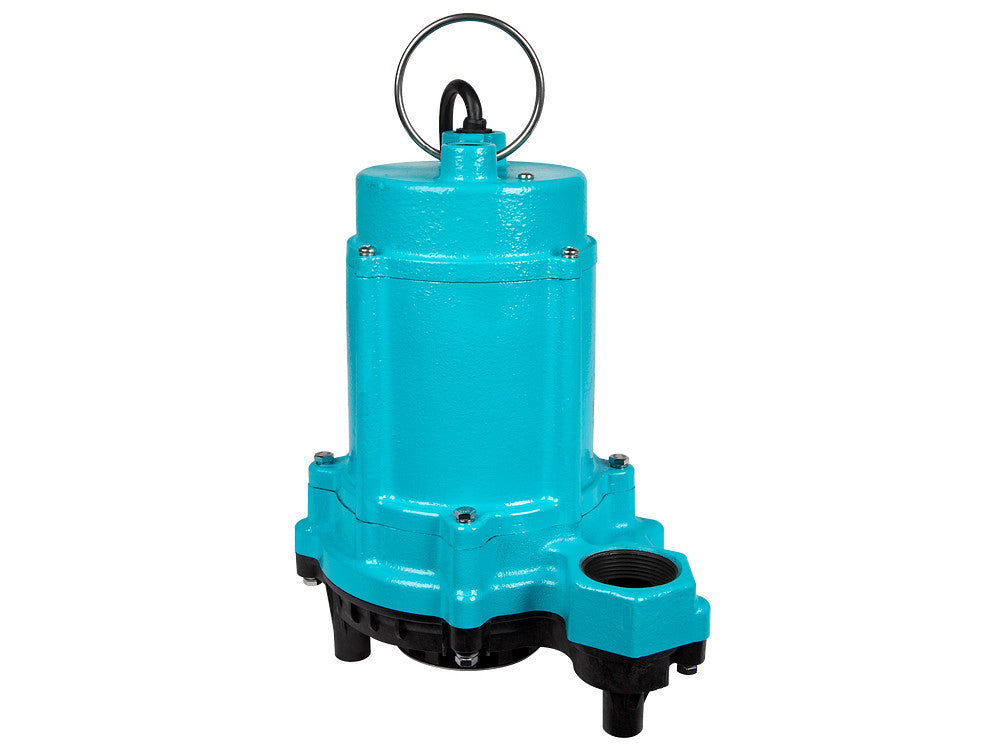

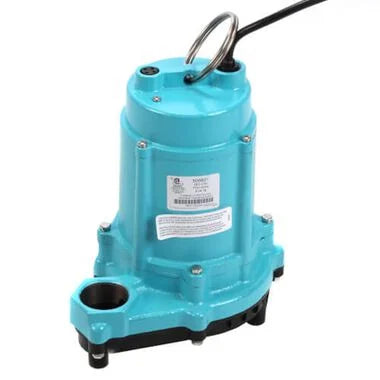

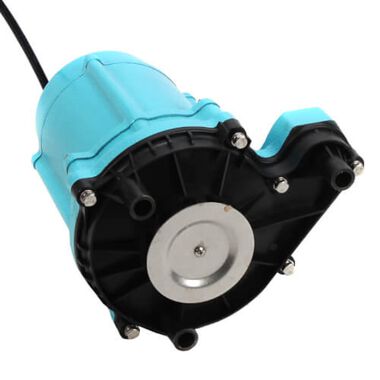

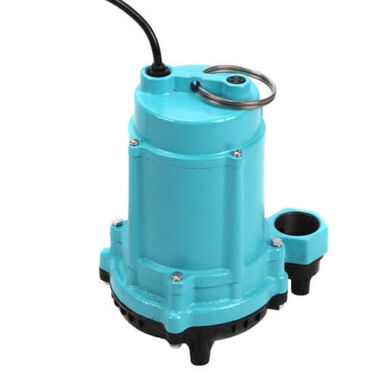

Little Giant - 6EC-CIM - 506801
Little Giant - 6EC-CIM - 506801
Couldn't load pickup availability
Little Giant 6EC Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance, and cooler running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EC series consumes only 5.0 amps while producing 53 GPM @ 5 ft. of head and reaching a maximum shut-off of 28 ft.
Features:
- Heavy-duty cast iron construction, Polypropylene base material
- Permanent split capacitor (PSC) motor with thermal overload protection
- Designed for continuous duty
- Energy-saving low amp draw
- Cooler running motor
- 1-1/2" FNPT discharge (38 mm)
- Handles up to 1/2" (12.7 mm) solids
- Multiple switch options for automatic operation
- 140 °F (60 °C) liquid temperature rating
- cCSAus listed
Tech Specs:
- Type: Manual
- Application: Plumbing
- Horse Power: 1/3
- Voltage: 115v
- Amperage: 5
- Wattage: 600
- Flow at 5 FT Head: 53 GPM
- Flow at 10 FT Head: 50 GPM
- Flow at 15 FT Head: 42 GPM
- Flow at 20 FT Head: 34 GPM
- Shutoff Head (ft.): 28'
- Max Pressure (PSI):12.1
- Cord Length: 10'
- Weight (lbs): 27 lbs
- Discharge: 1-1/2" FNPT
- Solids Size: 1/2" max
- Warranty: 3 year
