Flomatic Valves - 4770BT - Model 302BT 4"

Flomatic Valves

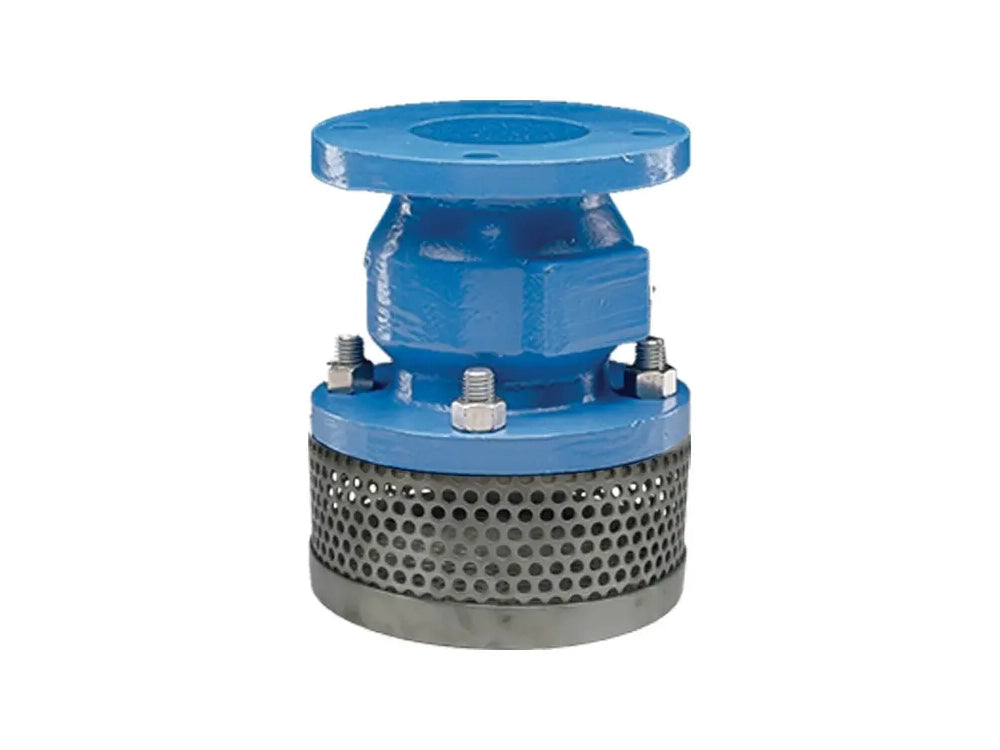

4" 302BT - Epoxy coated ductile iron, foot valve with a globe style body design for use with class 150 flanges. Unleaded bronze trim with an EPDM seal and 316 stainless steel strainer for 2" - 12" sizes. Stainless Steel trim and resilient seat standard on 16", 20", 24" sizes (ST Models). Available on other sizes optional. See note below.

Ductile Iron 2" - 12" - Max Pressure 180 PSI at 180°F

Cast Iron 14" - 24" - Max Pressure 150 PSI at 180°F
