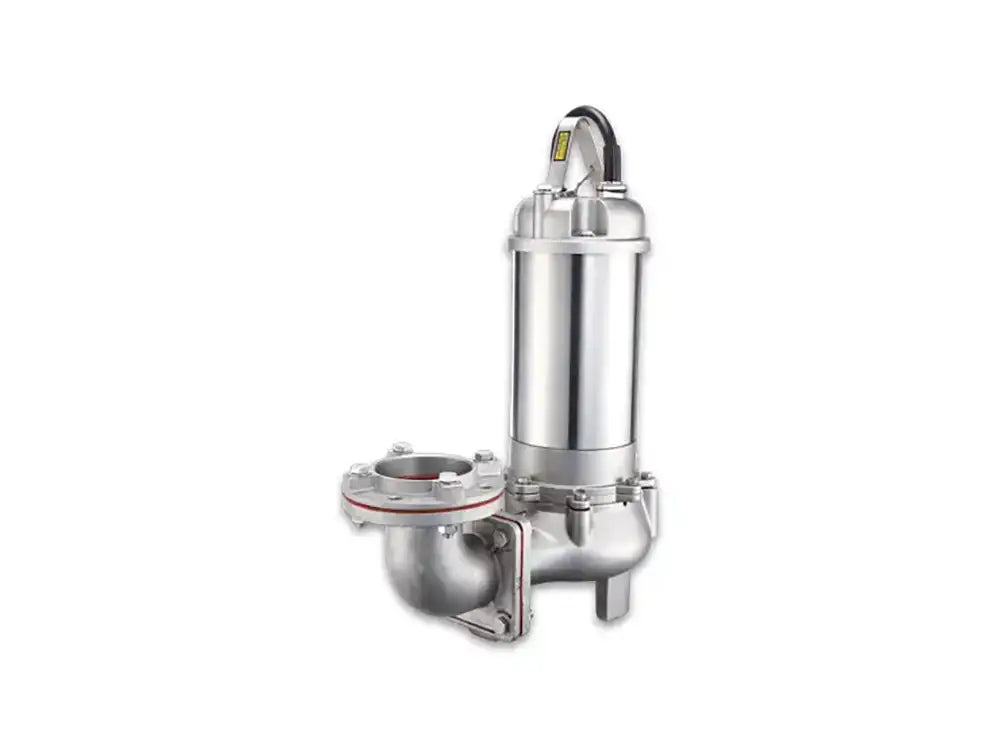

Barmesa Pumps - 3BSV753DS - 72090077 - 7.5HP, 3PH, 60Hz, 230V, 3450RPM, 3" 316 Stainless Steel, Double Seal, Vortex Impeller, 33ft Cord Submersible Pump

Barmesa Pumps - 3BSV753DS - 72090077 - 7.5HP, 3PH, 60Hz, 230V, 3450RPM, 3" 316 Stainless Steel, Double Seal, Vortex Impeller, 33ft Cord Submersible Pump

Key features:

• Discharge: 3" (7.62 cm) NPT flange. Includes flanged elbow at discharge.
• Spherical solids handling: 1.75" (45 mm)
• HP: 7.5
• RPM: 3450
• Impeller: 8 vane, semi-open vortex. 316 series stainless steel.
• Shaft: 316 series stainless steel
• Motor: for continuous dry running, operates at 230 V, 3-phase, 3450 RPM, 60 Hz. Class B, IP68 protection, with capacitor integrated in motor.
