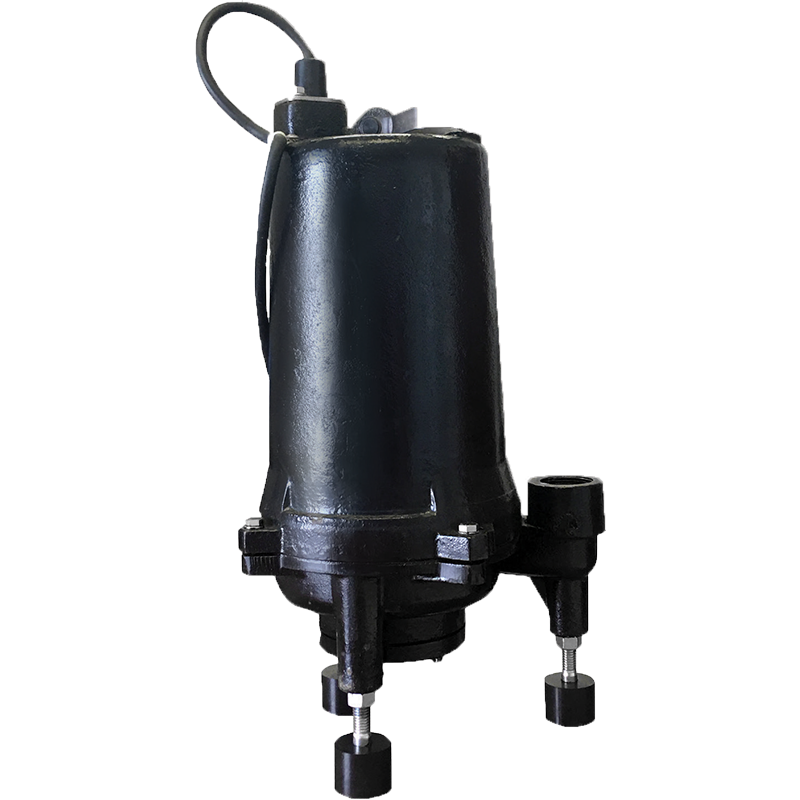

Champion Pump - 2HP Grinder Pump - CPG2022A

The grinder pump can easily handle waste from

• Residential/Commercial Developments
• Wastewater Transfer
• Hospitals, Motels, Apartments
• Schools, Universities
• Churches
• Campgrounds
• Office Complexes

Sealed Entrance-Replaceable Power Cord

• Easy to replace, prevents water from entering the motor housing through a cut power cord. Warranty is not voided if plug is cut off.

External Start Kit

• External Start / Run capacitor design for capacitors in the control panel.

Grinder Pump Design

• The centrifugal submersible grinder pump is capable of reducing all material found in normal residential and light industrial sewage containing small quantities of plastic, disposable diapers, sanitary napkins, rubber, food particles and other non-abrasive solids into a finely ground slurry.
• Heavy duty ASTMA48, Class 30 cast iron components.

Strong Motor

• Non-overloading high torque for powerful and reliable pump operation. The rotor and stator assembly is of the standard frame design.
• The motor windings shall be of Class B insulation and operate in a sealed environment containing clean dielectric oil, making it capable of operating in a totally, partially or non-submerged condition for extended periods of time without damage due to the heat being generated.

2-Bearing Support

• Pump shall utilize a 2-Bearing design operating in an oil bath atmosphere, consisting of an upper single row, an intermediate single row, ball bearing for thrust loads and a lower bronze sleeve bearing for radial loads to prevent shaft deflection. Long 50,000-hour B-10 bearing life.

Tandem Double Mechanical Seal Protection

• Each shaft seal prevents leakage between the pump and motor. The upper seal is constructed of a carbon rotating face and ceramic stationary face, 300 series stainless steel hardware, and all elastomer parts to be Buna-N. The lower seal is silicon carbide rotating face and stationary face, 300 series stainless steel hardware, and all elastomer parts to be Viton.

Non-Overloading Hydraulic Design

• The recessed centrifugal impeller allows 100% performance curve operation from shut-off to maximum flow without damage to the pump or system.
• The recessed vortex impeller is out of the passageway of fluid flow, eliminating concerns of blockage or wear. The impeller shall be capable of being trimmed to meet specific performance characteristics.

Proven Grinder Assembly

• The shredding ring and radial cutter shall be constructed of 440C stainless steel hardened to a minimum Rockwell C55 and shall be finished for a fine cutting edge.
• The grinding mechanism shall be constructed to eliminate clogging and jamming under starting and all normal conditions and capable of passing stringy-type solids through the pump without roping or winding the material.

Accessories Included:

• Stainless steel lifting handle and anti-vibration rubber mounting feet are included with the grinder pump.

Tech Specs:

• 2HP Single Seal Grinder Pump with upper and lower ball bearings.
• Cast iron pump with 1-1/4" Discharge;
• Cast iron vortex impeller;
• Available with start components in the pump or in the control panel;
• Seal failure option available; Heads up to 134' TDH.
• Available in single phase.
• High Efficient Motor With Upper & Lower Ball Bearings / Runs Cooler & Last Longer
• Cast Iron Impeller / Durable For Long Life
• Sealed Entry-Replaceable Power Cord/ Easy To Replace, Prevents Water From Entering the Motor Housing Through A Cut Power Cord. Warranty Is Not Voided If the Plug Is Cut Off
• Piggy Back Switch / Pump Can Be Run Manually, Allows Owner To Keep Pumping Should The Switch Fail (Available only with a start and run capacitor in the motor)
• Every Pump Is Tested In Water / Ensures That The Pump Meets Head & Flow Requirements.
• SSPMA Certified / Certifies That Pump Meets Industry Standards
• Shut Off Heads Up To 134’ TDH
• Single Seal
• 1-1/4" or 2" Discharge
