SPI - 20A713 - 30CRDPC - M-Pilot - 30ft Mercury Pump Down Control Duty Float Switch (Non-Weighted) (120/240V) (No Plug)
SPI - 20A713 - 30CRDPC - M-Pilot - 30ft Mercury Pump Down Control Duty Float Switch (Non-Weighted) (120/240V) (No Plug)
Couldn't load pickup availability
SPI - 20A713 - 30CRDPC - M-Pilot - 30ft Mercury Pump Down Control Duty Float Switch (Non-Weighted) (120/240V) (No Plug)

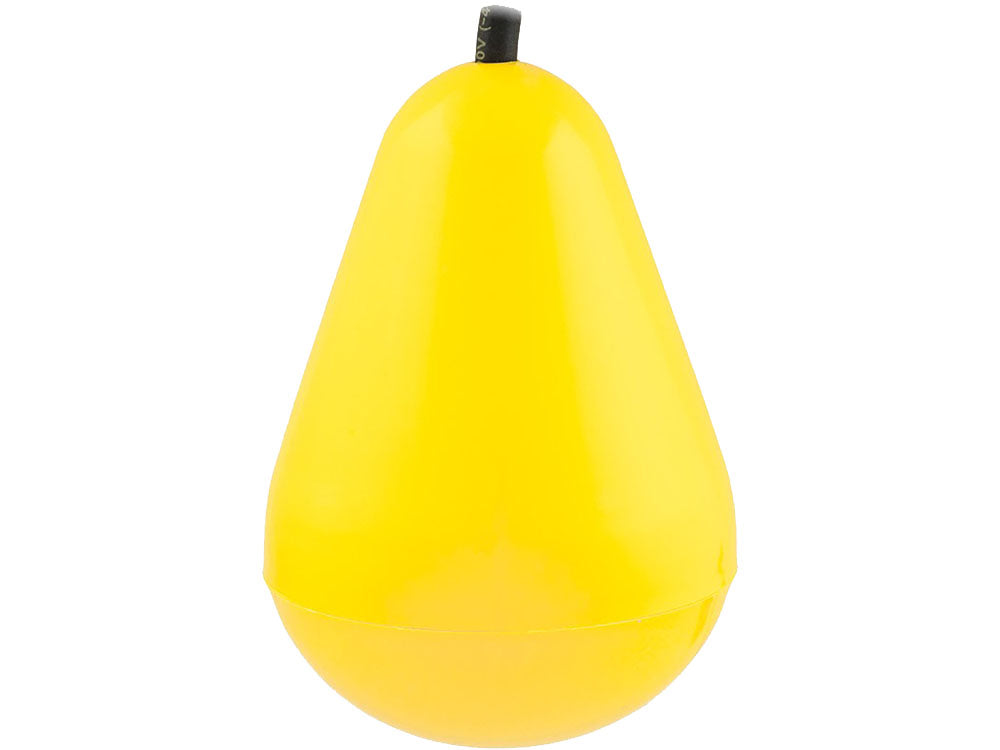

Mercury-activated, pilot duty control switches
• Narrow-angle float, not sensitive to rotation
• For use in water and sewage applications
• Available for pump-up and pump-down applications
• 16-gauge, 2-conductor, SJOW water-resistant (CPE) material
• Maximum 5 amps at 120 VAC / 240 VAC
• 10', 15', 20', 30', or 50' cord
• Individually boxed and includes external weight or SST pipe mount assembly
• For use on control panels and alarm circuits only
• UL / cUL
• Three-year limited warranty *Not recommended for use in drinking water applications. ** All floats that are not sold with an external weight are supplied with an SST pipe mount assembly kit
