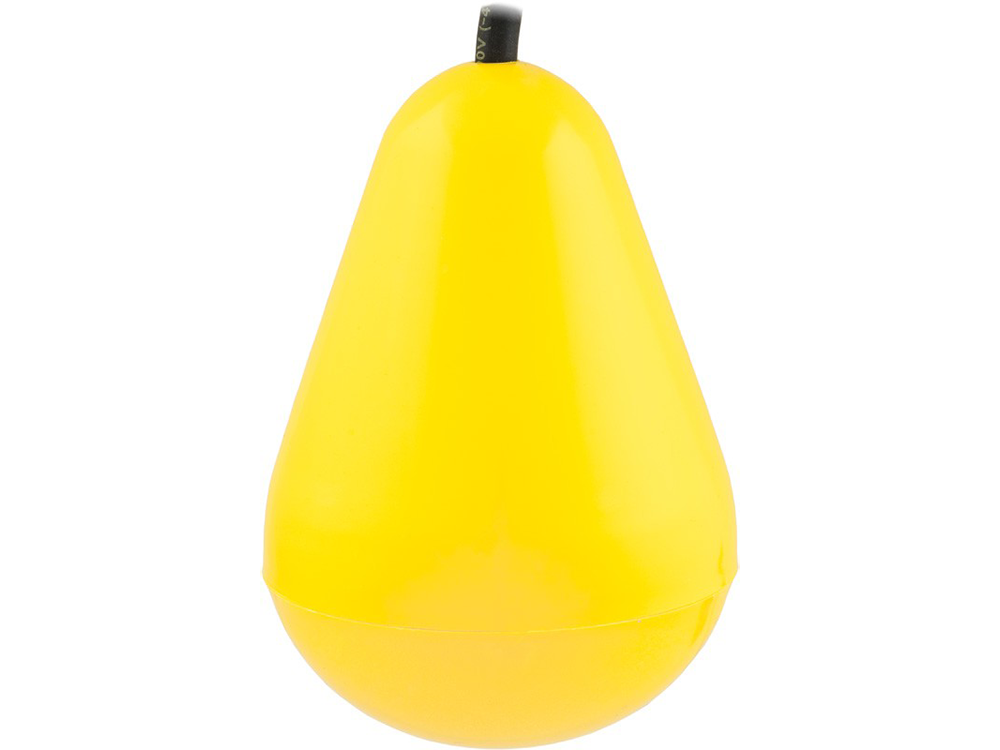

SPI - 15ft Mercury Float - 20A706-LY

Description

• Mercury-activated pilot duty control switches
• Narrow-angle float, not sensitive to rotation
• For use in water and sewage applications
• Available for pump-up and pump-down applications
• 16-gauge, 2-conductor, SJOW water-resistant (CPE) material
• Maximum 5 amps at 120 VAC / 240 VAC
• 15' cord
• Individually boxed and includes external weight
• For use on control panels and alarm circuits only
• UL / cUL
• Three-year limited warranty *Not recommended for use in drinking water applications.

** All floats that are not sold with an external weight are supplied with an SST pipe mount assembly kit
