SPI - 20A609-E - 20CMDPC-E - E-Pilot - 20ft Mechanical Pump Down Control Duty Float Switch (Non-Weighted) (120/240V) (No Plug)

SPI - 20A609-E - 20CMDPC-E - E-Pilot - 20ft Mechanical Pump Down Control Duty Float Switch (Non-Weighted) (120/240V) (No Plug)

 Mechanically-activated, pilot duty control switches
• Narrow angle float, not sensitive to rotation
• For use in water and sewage applications
• Available for pump up and pump down applications
• 16-gauge, 2-conductor, SJOW water-resistant (CPE) material
• Maximum 5 amps at 120 VAC / 240 VAC
• 10', 15', 20', 30', or 50' cord
• Individually boxed and includes external weight or SST pipe mount assembly
• For use on control panels and alarm circuits only
• UL / CSA
• All floats that are not sold with an external weight are supplied with an SST pipe mount assembly kit
• Three-year limited warranty

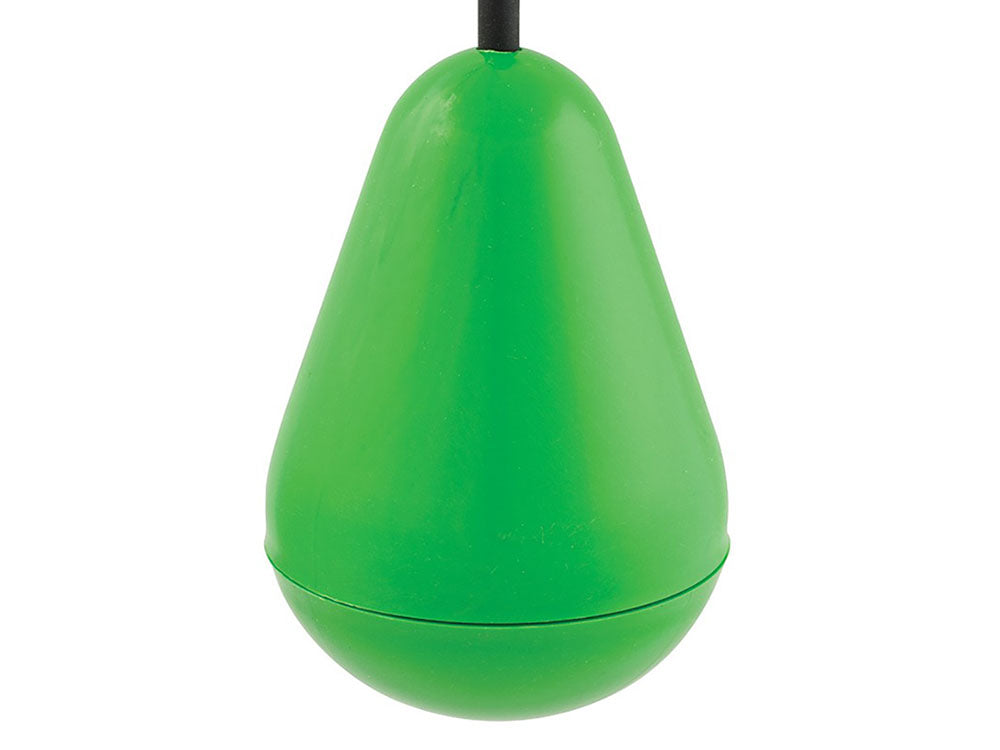

• Foam filled mechanical float
