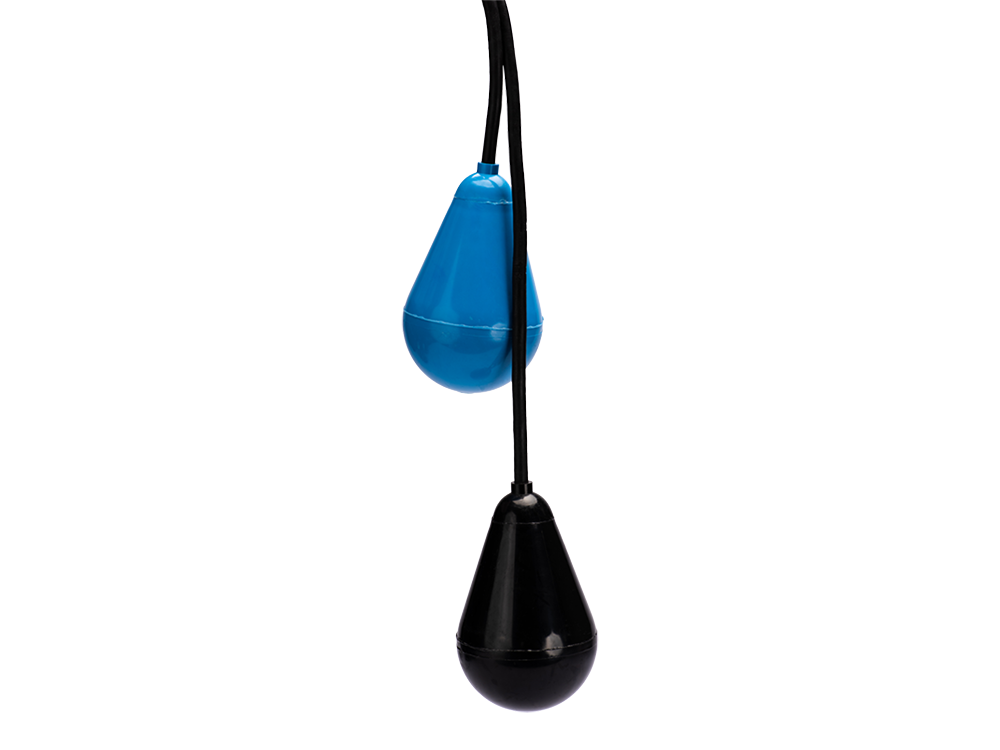

Wide-angle float to directly control a pump
• Not sensitive to rotation or turbulence
• For use in water and sewage applications
• Controls pumps up to 1 HP at 120 VAC and 2 HP at 240 VAC
• Available for pump up and pump down applications
• Adjustable pumping range of 2 to 54 inches
• 14-gauge, 3-conductor, SJOW water-resistant (CPE) material
• Max pump running current, 15 amps / Max pump starting current, 96 amps
• 10', 20', or 30' cord with piggyback plug
• Individually boxed and includes SST pipe mount assembly
• UL / CSA
• Three-year limited warranty
