SPI - 20A301-E - 10AMDNOP - A-Navigator - 10' Foam Filled High Amp Mechanical Pump Down Float Switch (No Plug)

SPI - 20A301-E - 10AMDNOP - A-Navigator - 10' Foam Filled High Amp Mechanical Pump Down Float Switch (No Plug)

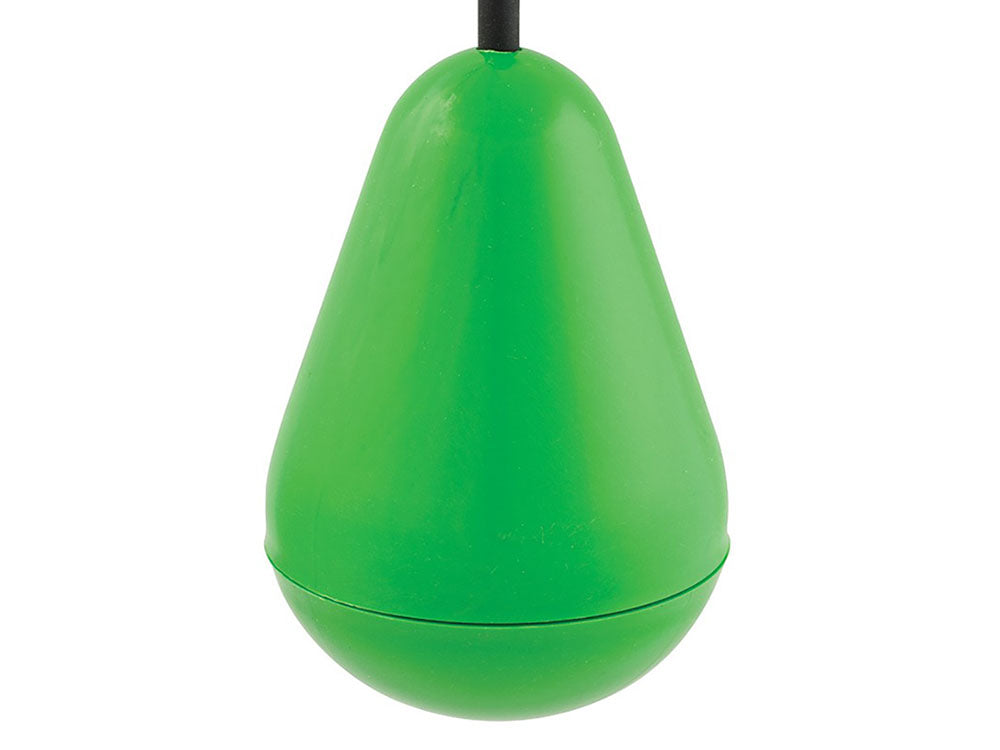

• Mechanically-activated, High Amp, 90 degree wide-angle float to directly control a pump
• Foam-Filled shell adds to durability
•  Not sensitive to rotation or turbulence
• For use in water and sewage applications
• Controls pumps up to 1-1/2 HP at 120 VAC and 3 HP at 240 VAC
• Available for pump down applications
• Adjustable pumping range of 8 to 28 inches
• 12-gauge, 2-conductor, SJOW water-resistant (CPE) material
• Max pump running current, 25 amps
• Max pump starting current, 96 amps
• 10', 15', 20', 30', or 50' cord lengths for direct wiring only
• Individually boxed and includes SST pipe mount assembly
• UL / CSA | Three-year limited warranty
