SPI - 20A205 - 20SVD1WP - V-Navigator - 20' Vertical Mechanical Float Switch (120V) (w/ Plug)
SPI - 20A205 - 20SVD1WP - V-Navigator - 20' Vertical Mechanical Float Switch (120V) (w/ Plug)
Couldn't load pickup availability

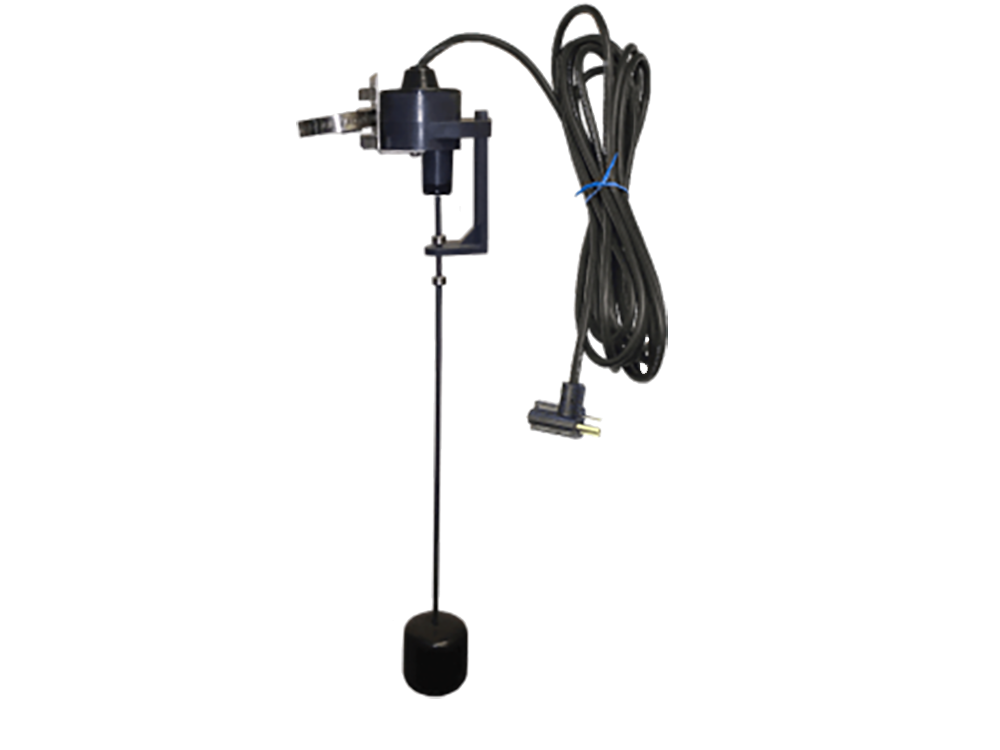

SPI - 20A205 - 20SVD1WP - V-Navigator - 20' Vertical Mechanical Float Switch (120V) (w/ Plug)
Mechanically-activated, vertical float to directly control a pump
• Not sensitive to rotation or turbulence
• For use in water and sewage applications
• Designed to operate in confined areas
• Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 240 VAC
• Available for pump down applications
• 18" and 24" rod lengths available
• Adjustable pumping range of 1 to 6 inches
• 16-gauge, 2-conductor, SJOW water-resistant (CPE) material
• Max pump running current, 10 amps
• Max pump starting current, 59 amps
• 10', 15', 20', or 30' cord with piggyback plug
• Individually boxed and includes SST pipe mount assembly
• UL / CSA
• Three-year limited warranty
