SJE Rhombus - 115V 15' Double Mercury Piggyback Float - 1062899

***THIS PRODUCT MAY HAVE A LEAD TIME FOR SHIPMENT, PLEASE CONTACT US FOR MORE INFORMATION***

The Double Float® mercury-activated, wide-angle pump switch is designed to
control pumps up to 1 HP at 120 VAC and 2 HP at 230 VAC for:

• non-potable water applications
• sewage applications

It is well-suited for confined applications requiring an accurate pumping range.
It is not sensitive to rotation or turbulence. This switch is voltage sensitive - use
it with the correct voltage.

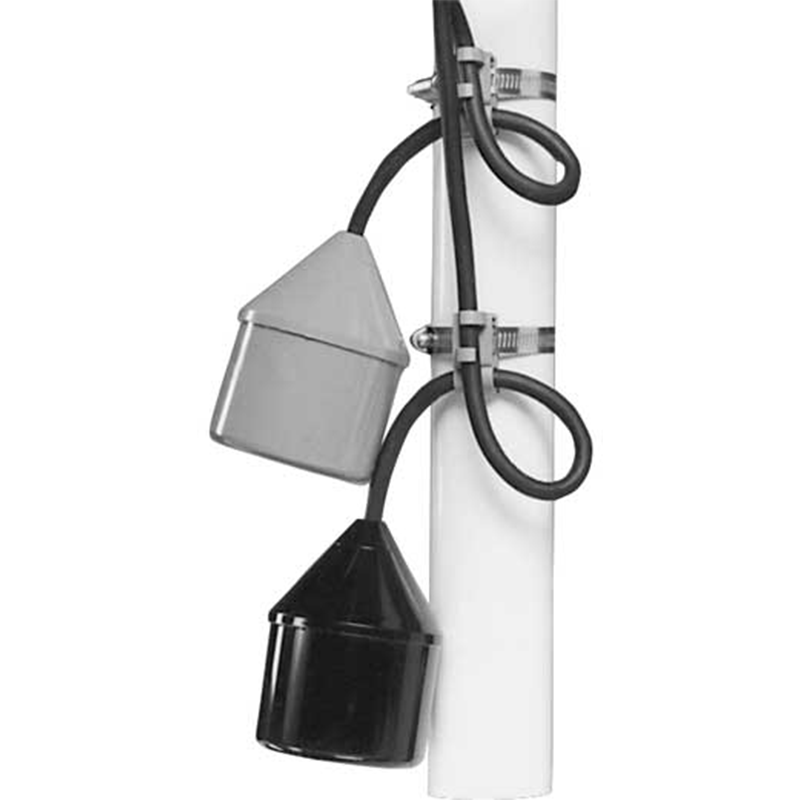

The Double Float® pump switch consists of two floats and a splice tube. Each
float contains a heavy-duty mercury switch. The splice tube contains a holding
relay that enables the floats to function in series.

The holding relay eliminates pump chatter in turbulent conditions allowing the
Double Float® pump switch to operate relay control panels for larger pump
applications.

• 15'
• 115V
• 15FLA
• DOUBLE MERCURY PIGGYBACK FLOAT WITH PLUG

PUMPING RANGE: 1.75 to 48 inches (4.45 cm to 122 cm), increased pumping range available. Call factory for quote.

CABLE ATTACHED TO FLOAT HOUSING: flexible 14 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)

CABLE ABOVE SPLICE: flexible 14 gauge, 3 conductor (UL, CSA) SJTW, water-resistant thermoplastic

FLOAT: 3.38 inch diameter x 4.55 inch long (8.58 cm x 11.5 cm), high impact, corrosion resistant, PVC housing for use in sewage and non-potable water up to 140°F (60°C)

ELECTRICAL: A Pump Switch is designed for Horsepower (HP) rated loads and is not suitable for control (pilot duty) applications. It will fail prematurely when switching loads less than 1 Amp at 120 VAC. Select a float switch from our Control Switch offering for control applications.

SPECIFICATIONS:

• Voltage 50Hz/60Hz Single Phase - 120 VAC
• Max. Pump Run Current - 15 amps
• Max. Pump Start Current - 55 amps
• Recommended Pump HP - 1 HP or less
• PUMP DOWN is normally open contacts for emptying.
• PUMP UP is normally closed contacts for filling.

DIRECT WIRING:

• 120 VAC units used for direct wiring (without plug) can only be used with 120 VAC applications within specified amp ratings.

NOTE: This switch must be used with pumps that provide integral thermal overload protection.
