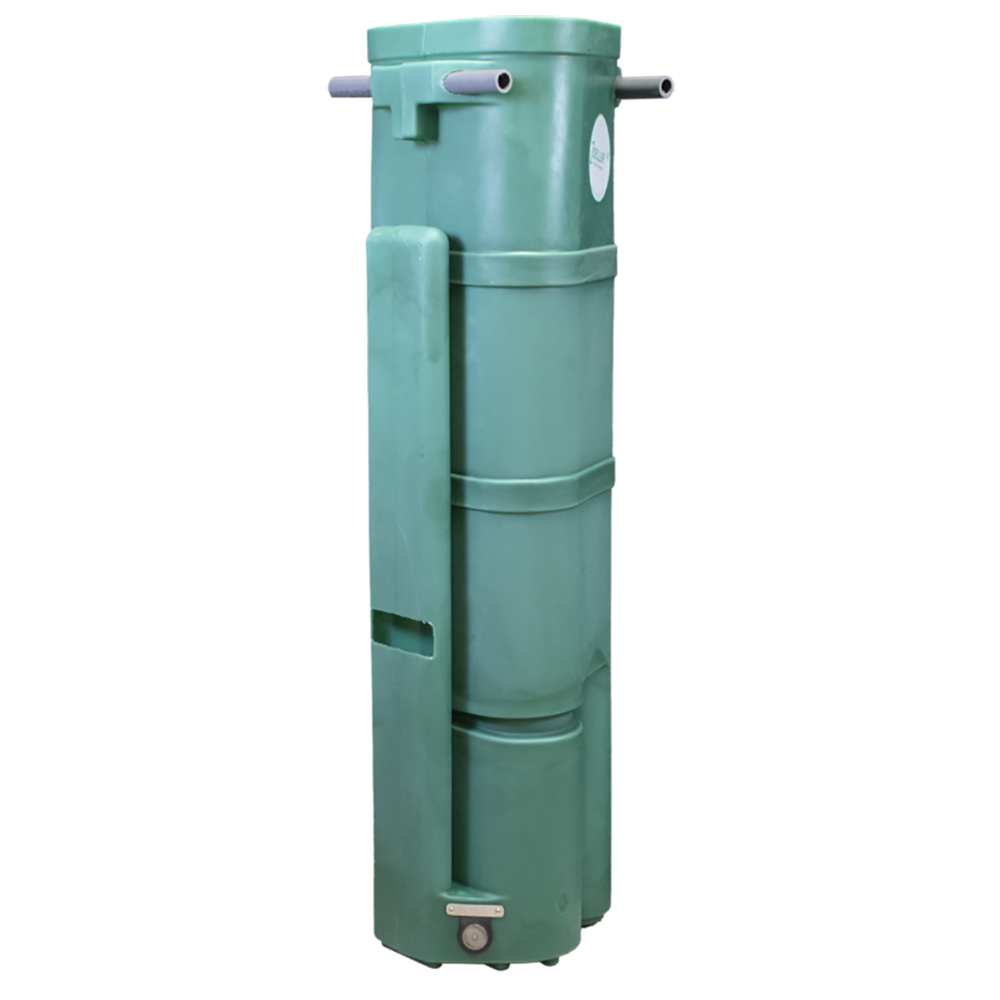

Zoeller Pump Company - 5041-0028 - Vault,Turb Step/84"/Field Cut Inlet

Our Turbine STEP (Septic Tank Effluent Pump) Vault provides an economical means of adding a high head filtered pump chamber to an existing single compartment tank.  The Turbine Step Vault eliminates the need to install a separate pump tank.  It is often used on repair sites with space constraints.  The 4″ turbine effluent pumps used in this vault typically produce higher pressure and less flow than our cast iron centrifugal pumps.

Each Turbine STEP Vault is designed for use in simplex or duplex pumping applications.  It is ideal for cluster system pressure sewers or drip irrigation systems. With vault heights ranging from 51” to 120,” the Turbine STEP Vault can be customized for almost any project.

Each Turbine STEP Vault includes a filter pack with a handle and a pump chamber.  The filter pack utilizes the deep pleated filter design of Zoeller’s WW1 effluent filter, providing 928 linear feet of filtration area and a flow rate of 7,000 GPD.  The filters screen solids to 1/16.”  The vault’s inlet can be installed at the factory or cut in the field by the installer.

A cost effective and efficient means of adding a pump chamber to an existing tank.

• Preassembled packages with controls are available
• Vault inlet can be factory cut or field cut by the contractor
• Incorporated filters screen solids to 1/16 inch
• 60” Factory cut, 2”x 5” inlet, 22.5” from bottom
• 10-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
